Fig. S2

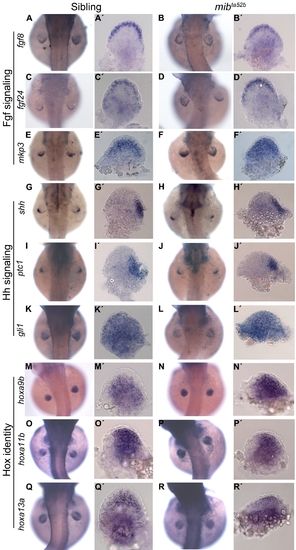

Proximal-distal and anterior-posterior patterning and Hox identity are not affected in mibta52b mutants. The Fgf signalling components fgf8 (n = 15) (A, A′) and fgf24 (n = 12) (C, C′) are expressed in the apical ectodermal fold of 48 hpf sibling embryos. The same pattern of expression is observed in the pectoral fins of mibta52b mutants (n = 12) (B, B′), (n = 14) (D, D′). The Fgf signalling downstream target mkp3 is expressed in a gradient through a distal to proximal direction in fin mesenchymal cells of sibling embryos (n = 16) (E, E′). The expression of mkp3 is upregulated proximally in mibta52b mutants (n = 18) (F, F′). The Hh signalling components shh and ptc1 are expressed in the zone of polarizing activity and gli1 in the mesenchymal cells that compose the fin. No differences in the expression pattern can be observed between siblings (n = 12) (G, G′), (n = 15) (I, I′), (n = 10) (K, K′) and mibta52b mutants (n = 10) (H, H′), (n = 12) (J, J′), (n = 11) (L, L′). The expression of hoxa9b, hoxa11b and hoxa13a reveals no differences in the patterns of these genes in siblings (n = 9) (M, M′), (n = 11) (O, O′), (n = 10) (Q, Q′) and mibta52b mutants (n = 10) (N, N′), (n = 9) (P, P′), (n = 11) (R, R′). (A–R) Whole embryos. (A′–R′) Detached pectoral fins with distal to the top and posterior to the right.
