Fig. 2

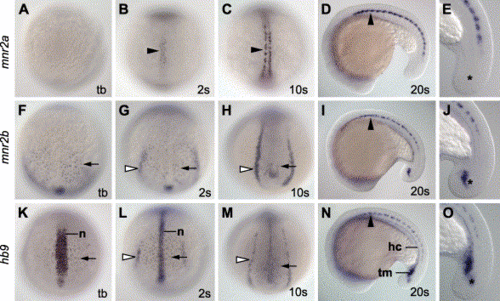

Expression of zebrafish mnx genes in early embryogenesis. Expression of mnr2a (A–E), mnr2b (F–J) and hb9 (K–O) in whole embryos at tailbud stage (A, F, K), two somite stage (B, G, L), 10 somite stage (C, H, M) and at 20 somite stage (D, I, N). (E, J, O) Higher magnification of the tail region of 20-somite stage embryos. Embryos are shown from dorsoposterior with anterior up (A–C, F–H, K–M) or from lateral with dorsal up and anterior to the left (D, E, I, J, N, O). Indicated are expression domains in the ventral spinal cord (black arrowhead), lateral positioned mesoderm (white arrowhead), endoderm cells (arrow), notochord (n), hypochord (hc), ventral tail mesoderm (tm) and tailbud (asterisk). Note the complementary axial expression of hb9 and mnr2b in notochord and tail bud.

Expression Data
Genes:
Fish:
Anatomical Terms:
Stage Range: Bud to 20-25 somites
