FIGURE SUMMARY
Title

Cytosine base editors with increased PAM and deaminase motif flexibility for gene editing in zebrafish

Authors
Zhang, Y., Liu, Y., Qin, W., Zheng, S., Xiao, J., Xia, X., Yuan, X., Zeng, J., Shi, Y., Zhang, Y., Ma, H., Varshney, G.K., Fei, J.F., Liu, Y.
Source
Full text @ Nat. Commun.
Fig. 1

Cytosine base editing in all sequence contexts mediated by zevoCDA1-BE4max.a Schematic of the mRNA construct for zevoCDA1-BE4max. bpNLS: bipartite nuclear localization, zevoCDA1: cytosine deaminase, XTEN: a 32aa flexible linker, nSpCas9: SpCas9 nickase, linker: SGGSSGGS amino acid, UGI: Uracil glycosylase inhibitor. b Comparison of the editing efficiency of zAncBE4max, evoCDA1-BE4max, and zevoCDA1-BE4max, targeting six loci with NGG PAM. The data represent the aggregate result of three independently replicated experiments, and the error bars indicate the standard deviation of the mean values. Target sequence information is displayed below the data, respectively. c Summary of editing efficiency of zevoCDA1-BE4max at 21 NGG PAM sites on 20 genes. d?f Sanger sequencing results of zevoCDA1-BE4max at 3 loci. The sequence and name of gRNAs are labelled above the Sanger results. Source data are provided as a Source Data file.

Fig. 2

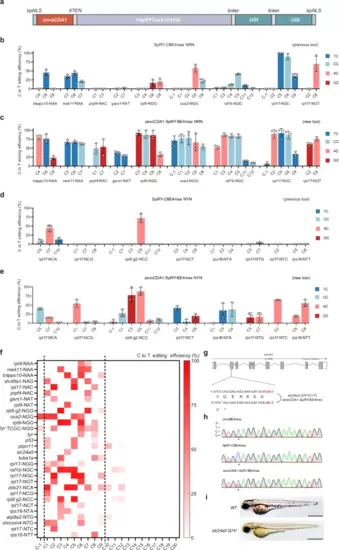

Efficient cytosine base editing at non-canonical PAM sites by zevoCDA1-SpRY-BE4max.a Schematic representation of the mRNA construct for zevoCDA1-SpRY-BE4max. bpNLS: bipartite nuclear localization, zevoCDA1: cytosine deaminase, XTEN: a 32aa flexible linker, nSpRYCas9: SpCas9 nickase varient, linker: SGGSSGGS amino acid, UGI: Uracil glycosylase inhibitor. b?e Comparison of editing efficiencies between SpRY-CBE4max (b, d) and zevoCDA1-SpRY-BE4max (c, e) using 17 gRNAs targeting NRN PAMs (b, c) and NYN PAMs (d, e). The data represent the aggregate results of three independently replicated experiments, and the error bars indicate the standard deviation of the mean values. f Editing efficiency of zevoCDA1-SpRY-BE4max at 30 NNN PAM sites across 18 genes. g Schematic diagram of the slc24a5 target locus. The targeted sequence is shown with the PAM highlighted in red. The targeted cytosine nucleotide and expected changes are highlighted in blue. h Sanger sequencing results comparing zAncBE4mx, SpRY-CBE4max and zevoCDA1-SpRY-BE4max at the slc24a5 Q74* target locus. The red arrowhead indicates the expected nucleotide substitutions. i Lateral view of 3 dpf F1 homozygous embryos with the slc24a5 Q74* mutation (bottom) showing pigmentation defects compared with wild-type (top). Scale bar: 500 ?m. Three independent experiments were repeated with similar results. Source data are provided as a Source Data file.

Fig. 3

Precise cytosine base editing by zevoCDA1-NL and zevoCDA1-198.a The mRNA construct of zevoCDA1-NL and zevoCDA1-198 for precise cytosine base editing. The XTEN linker was deleted from zevoCDA1-SpRY-BE4max to generate zevoCDA1-NL, and the nuclear export signal (NES) located at the C-terminus of the evoCDA1 deaminase was subsequently removed to generate zevoCDA1-198. bpNLS: bipartite nuclear localization, zevoCDA1: cytosine deaminase, nSpRYCas9: SpCas9 nickase varient, linker: SGGSSGGS amino acid, UGI: Uracil glycosylase inhibitor. b?d Assessment of the editing efficiency and targeting window of zevoCDA1-SpRY-BE4max (b), zevoCDA1-NL (c) and zevoCDA1-198 (d) using 8 gRNAs targeting NNN PAMs. The data represent the sum of three independently replicated experiments, and the error bars represent the standard deviation of the mean values. e Summary of editing efficiency of zevoCDA1-SpRY-BE4max, zevoCDA1-NL and zevoCDA1-198 at 10 NNN PAM sites across 8 genes. The dotted range indicates the editing window. f Schematic diagram of the pitx2 target locus. The target sequence is displayed with the PAM highlighted in red and the target nucleotide and expected nucleotide changes are highlighted in blue. g Comparison of Sanger sequencing results for zevoCDA1-SpRY-BE4max, zevoCDA1-NL, and zevoCDA1-198 at the pitx2 R89W target locus. The red arrowhead indicates the expected nucleotide substitutions. h?i? Dorsal view of 5 dpf F1 homozygous embryos with the pitx2 R89W mutation showing absence of anterior chamber (ac). WT anterior chambers are highlighted with black arrows in the close-up view of the head (h) and with a dashed outline and black arrow in the close-up view of the eye (h?). The absence of the anterior chamber in mutant zebrafish is highlighted by a white arrow in the close-up view of the head (i) and eye (i?). Scale bars: 100 ?m. j?k? Alcian blue staining of 5-dpf wild-type and pitx2 R89W mutant embryos. The ventral view (j, j?) and lateral view of (k, k?) wild-type AB zebrafish (j, k) and pitx2 R89W (j?, k?) embryos at 5 dpf. pitx2 R89W mutant (j?, k?) shows severe structural malformations in Meckel?s cartilage (mc) highlighted with arrow and red dotted line compared with WT AB (j, k). Scale bars: 200 ?m. Three independent experiments were repeated with similar results. Source data are provided as a Source Data file.
