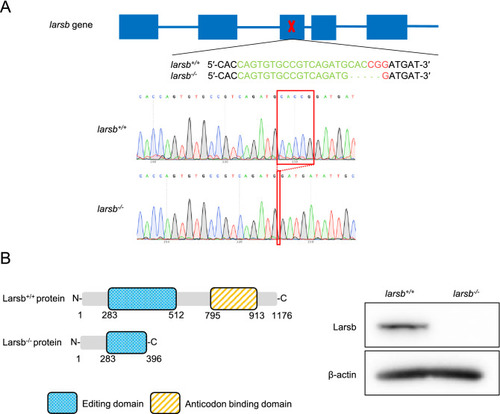

Construction of larsb-knockout mutant zebrafish line. (A) Diagram showing the larsb genomic locus, CRISPR/Cas9 target site, and larsb-knockout (larsb^−/−) zebrafish mutant genotype. The sgRNA target sequence is displayed in green and the PAM region in red. In the genomic sequencing analysis chromatograms, the deletion region in the mutant larsb^−/− zebrafish is shown by the red box. (B) The Lars protein of larsb^−/− zebrafish had a missing editing domain. Western blot analysis of the Larsb protein expression in larsb^+/+ and larsb^−/− zebrafish. β-actin levels served as the loading control. Larsb: leucyl-tRNA synthetase b.

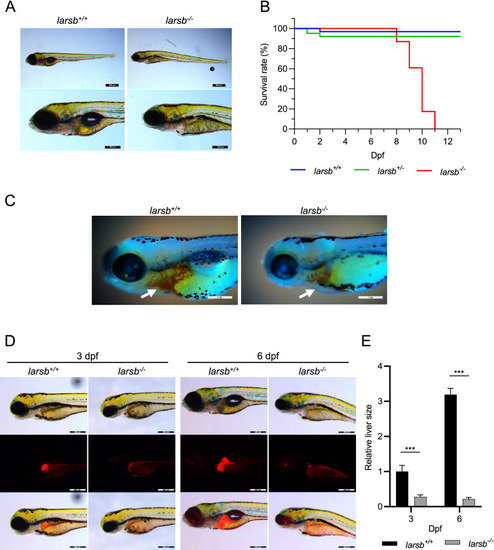

Larsb-knockout larvae display severe developmental phenotype and liver abnormality with early lethality. (A) Bright field lateral views of larsb^+/+ and larsb^−/− embryos at 96 h post fertilization (hpf). Scale bar: 500 μm (top row) and 300 μm (bottom row). (B) Kaplan–Meier survival curve of larsb^+/+ (n = 32), larsb^+/- (n = 63), and larsb^−/− (n = 23) larvae. (C) Lateral views of larsb^+/+ and larsb^−/− embryos containing haemoglobin-containing cells (white arrows) stained with o-dianisidine at 72 hpf. (D) Morphological abnormality at 3 dpf and 6 dpf in the livers of larsb^−/− larvae under Tg[fabp10:mcherry] background. Scale bar: 300 μm. (E) Quantification of liver size in larsb^−/− larvae under Tg[fabp10:mcherry] background (3 dpf and 6 dpf). Liver sizes were evaluated using ImageJ software version 1.52a (https://imagej.nih.gov/ij/). n = 5 fish/group. Error bars indicate SEM. Student’s t-test; ***P < 0.001. Statistics were calculated and the figure was produced in GraphPad software version 8 (https://www.graphpad.com/scientific-software/prism/). Larsb: leucyl-tRNA synthetase b, dpf: days post fertilization.

Histopathology and fluorescent immunostaining of larsb-knockout larvae. (A) Lower magnification sagittal views (top row) and higher magnification views (bottom row) of larsb^+/+ and larsb^−/− larvae. Huge vacuolations, which seemed to disappear in the cytoplasm, were seen in the livers of larsb^−/− larvae (black arrows), and some large vacuolations included a bare nucleus (black arrowheads). Scale bar: 25 µm. (B) Western blot analysis of p62 and Lc3b protein expression in larsb^+/+ and larsb^−/− larvae. β-actin levels served as the loading control. (C) Lower magnification sagittal views of larsb^+/+ and larsb^−/− larvae (top row). Fluorescent immunostaining against Lc3b (green) and DAPI (blue) of the livers, skeletal muscles, and spinal cords of larsb^+/+ and larsb^−/− larvae. Livers of larsb^−/− larvae had large vacuoles, including floating nuclei and various sized dots with Lc3b immunoreactivity (white arrows). Skeletal muscles and spinal cords of larsb^−/− larvae had many dots with Lc3b immunoreactivity (white arrowheads). Scale bar: 10 µm. Lars: leucyl-tRNA synthetase; Lc3b: microtubule-associated protein 1A/1B-light chain 3; DAPI: 4′,6-diamidino-2-phenylindole.

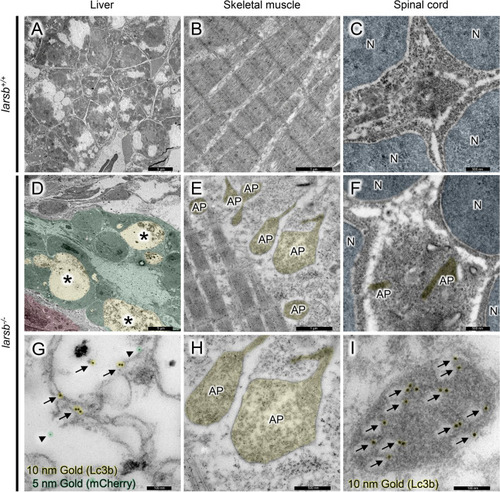

Immunoelectron microscopy of larsb-knockout larvae under Tg[fabp10:mcherry] background. (A–C) Immunoelectron microscopy of the liver, skeletal muscle, and spinal cord of larsb^+/+ larva. (D–I) Immunoelectron microscopy of the liver, skeletal muscle, and spinal cord of larsb^−/− larva. The bottom row shows higher magnification images (G–I). Large vacuoles in the livers of larsb^−/− larvae (asterisks) were composed of numerous irregular membranous structures, which showed immunoreactivity against both Lc3b (black arrows) and mCherry (black arrowheads) (D,G). Scale bar: 5.0 µm for (A,D); 1.0 µm for B and E; 500 nm for (C,F,H); 100 nm for (G,I). AP: autophagosome, N: nucleus, Larsb: leucyl-tRNA synthetase, Lc3b: microtubule-associated protein 1A/1B-light chain 3.

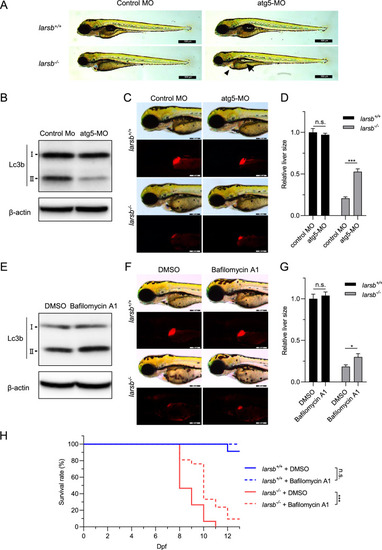

Inhibition of autophagy prevents abnormal development and improves survival in larsb-knockout larvae. (A) Morphology of larsb^+/+ and larsb^−/− embryos injected with either control MO or atg5-MO (72 h post fertilization (hpf)). Scale bars: 500 µm. (B) Western blot analysis of Lc3b protein expression at 72 hpf for wild-type embryos injected with either control MO or atg5-MO. β-actin levels served as the loading control. (C) Morphological abnormality at 72 hpf in the livers of larsb^−/− larvae under Tg[fabp10:mcherry] background injected with either control MO or atg5-MO. Scale bars: 200 μm. (D) Quantification of liver size in larsb^−/− larvae under Tg[fabp10:mcherry] background (72 hpf). Liver sizes were evaluated using ImageJ software version 1.52a (https://imagej.nih.gov/ij/). n = 4 fish/group. Error bars indicate SEM. Student’s t-test; ***P < 0.001. (E) Western blot analysis of Lc3b protein expression at 72 hpf for wild-type embryos treated with DMSO or bafilomycin A1. β-actin levels served as the loading control. (F) Morphological abnormality at 72 hpf in the livers of larsb^−/− larvae under Tg[fabp10:mcherry] background treated with DMSO or bafilomycin A1. Scale bars: 200 μm. (G) Quantification of liver size in larsb^−/− larvae under Tg[fabp10:mcherry] background (72 hpf). Liver sizes were evaluated using ImageJ software version 1.52a (https://imagej.nih.gov/ij/). n = 10 fish/group. Error bars indicate SEM. Student’s t-test; *P < 0.05. (H) Kaplan–Meier survival curve of larsb^+/+ (n = 23) and larsb^−/− (n = 15) larvae treated with DMSO and larsb^+/+ (n = 11) and larsb^−/− larvae (n = 21) treated with bafilomycin A1. Statistics were calculated and the figure was produced in GraphPad software version 8 (https://www.graphpad.com/scientific-software/prism/). Larsb: leucyl-tRNA synthetase b, MO: morpholino, n.s.: non-significant, DMSO: dimethyl sulfoxide, Dpf: days post fertilization.
