The expression of natriuretic peptide receptors in developing zebrafish embryos

Authors
Gong, J., Chai, L., Xu, G., Ni, Y., Liu, D.
Source
Full text @ Gene Expr. Patterns

Expression analysis of zebrafish npr1a. (A) 3 hpf, lateral view, no staining. (B) 14 hpf, lateral view, weak staining. (C) 24 hpf, lateral view, red arrowhead indicates tectal ventricle; green arrowhead indicates pharyngeal arches. (C′) 24hpf, dorsal view, arrowhead indicates tectal ventricle. (D) 36 hpf, lateral view, red arrowhead indicates tectal ventricle; green arrowhead indicates pharyngeal arches. (D′) 36 hpf, dorsal view, arrowhead indicates tectal ventricle. (E) 48 hpf, lateral view, red arrowhead indicates tectal ventricle; green arrowhead indicates pharyngeal arches. (E′) 48 hpf, lateral view, arrowhead indicates tectal ventricle; arrow indicates hindbrain. (F) 72 hpf, lateral view; green arrowhead indicates lens. (F′) 72 hpf, lateral view, yellow arrowhead indicates heart, green arrowhead indicates pharyngeal arche. (F″) 72 hpf, dorsal view, green arrowheads indicate lens; red arrowheads indicate retina (ganglion cell layer). (G) Reverse transcriptase-PCR analysis of zebrafish npr1a.

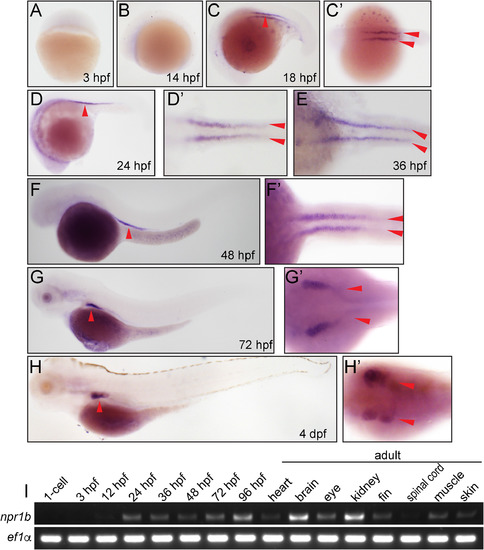

Expression analysis of zebrafish npr1b. (A) 3 hpf, lateral view, no staining. (B) 14 hpf, lateral view, no staining. (C) 18 hpf, lateral view, red arrowhead indicates anterior pronephric duct. (C′) 18hpf, dorsal view, arrowheads indicate anterior pronephric duct. (D) 24 hpf, lateral view, arrowhead indicates anterior pronephric duct. (D′) 24 hpf, dorsal view, arrowheads indicate anterior pronephric duct. (E) 36 hpf, dorsal view, arrowheads indicate anterior pronephric duct. (F) 48 hpf, lateral view, arrowhead indicates anterior pronephric duct. (F′) 48 hpf, dorsal view, arrowheads indicate anterior pronephric duct. (G) 72 hpf, lateral view, arrowhead indicates anterior pronephric duct. (G′) 72 hpf, dorsal view, arrowheads indicate anterior pronephric duct. (H) 4 dpf, lateral view, arrowhead indicates anterior pronephric duct. (H′) 4 dpf, dorsal view, arrowheads indicate anterior pronephric duct. (I) Reverse transcriptase-PCR analysis of zebrafish npr1b.

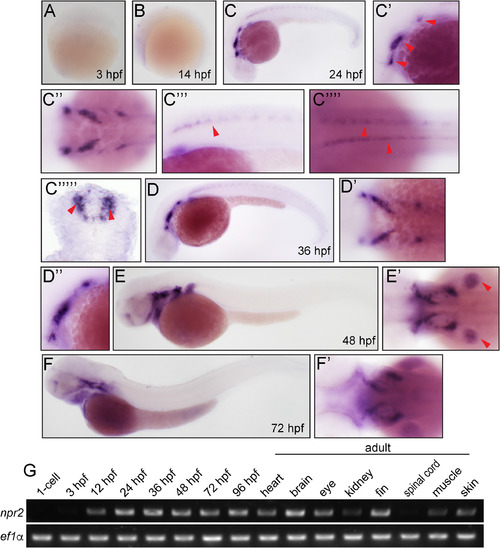

Expression analysis of zebrafish npr2. (A) 3 hpf, lateral view, no staining. (B) 14 hpf, lateral view, no staining. (C) 24 hpf, lateral view. (C′) 24 hpf, lateral view, arrowhead indicates branchial arches. (C″) 24 hpf, dorsal view. (C‴) 24 hpf, lateral view, arrowhead indicates neural tube. (C‴’) 24 hpf, dorsal view, arrowheads indicate neural tube. (C‴’’) 24 hpf, the trunk transverse section of the embryos, arrowheads indicate neural tube. (D, D″) 36 hpf, lateral view. (D′) 36 hpf, dorsal view. (E) 48 hpf, lateral view, overview of whole body. (E′) 72hpf, lateral view, arrowheads indicate pectoral fins. (F) 72 hpf, lateral view. (F′). 72 hpf, dorsal view. (G) Reverse transcriptase-PCR analysis of zebrafish npr2.

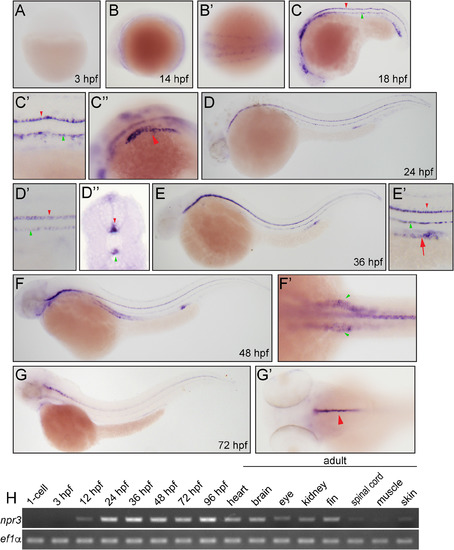

Expression analysis of zebrafish npr3. (A) 3 hpf, lateral view, no staining. (B) 14 hpf, lateral view, weak staining. (B′) 14 hpf, dorsal view, weak staining. (C, C′) 18 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (C″) 18hpf, dorsal view, arrowhead indicates proximal convoluted tubule. (D, D′) 24 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (D″) 24 hpf, the trunk transverse section of the embryos stained with the antisense npr3 probe, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (E, E′) 36 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (F) 48 hpf, lateral view. (F′). 48hpf, lateral view, arrowhead indicates proximal convoluted tubule. (G) 72 hpf, lateral view. (G′) 72 hpf, dorsal view, arrowhead indicates floor plate. (H) Reverse transcriptase-PCR analysis of zebrafish npr3.
