FIGURE SUMMARY
Title

A Founder Mutation in VPS11 Causes an Autosomal Recessive Leukoencephalopathy Linked to Autophagic Defects

Authors
Zhang, J., Lachance, V., Schaffner, A., Li, X., Fedick, A., Kaye, L.E., Liao, J., Rosenfeld, J., Yachelevich, N., Chu, M.L., Mitchell, W.G., Boles, R.G., Moran, E., Tokita, M., Gorman, E., Bagley, K., Zhang, W., Xia, F., Leduc, M., Yang, Y., Eng, C., Wong, L.J., Schiffmann, R., Diaz, G.A., Kornreich, R., Thummel, R., Wasserstein, M., Yue, Z., Edelmann, L.
Source
Full text @ PLoS Genet.

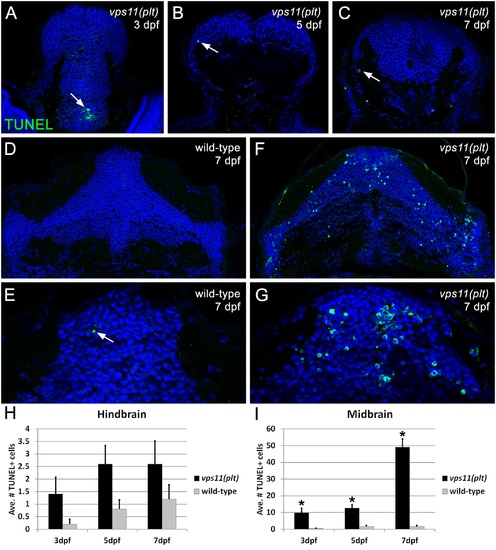

Significant cell death is observed in the CNS of zebrafish vps11(plt) mutants.TUNEL assay was performed on cryosectioned CNS tissue from vps11(plt) mutants and wild-type siblings at 3, 5, and 7 days post-fertilization (dpf). (A-C) Minimal apoptotic TUNEL+ cells were observed in the hindbrain of vps11(plt) mutants at 3, 5, and 7 dpf, respectively. (D-E) Tissue section of the midbrain of a wild-type control animal at 7 dpf showing minimal cell death (panel E, arrow). (F-G) Tissue section of the midbrain of a vps11(plt) mutant at 7 dpf showing extensive cell death. (H) Quantification of the average number of TUNEL+ cells observed in the hindbrain in vps11(plt) mutants and wild-type siblings at 3, 5, and 7 dpf. No significant differences were observed. (I) Quantification of the average number of TUNEL+ cells observed in the midbrain in vps11(plt) mutants and wild-type siblings at 3, 5, and 7 dpf. Asterisk indicates significantly different from control.

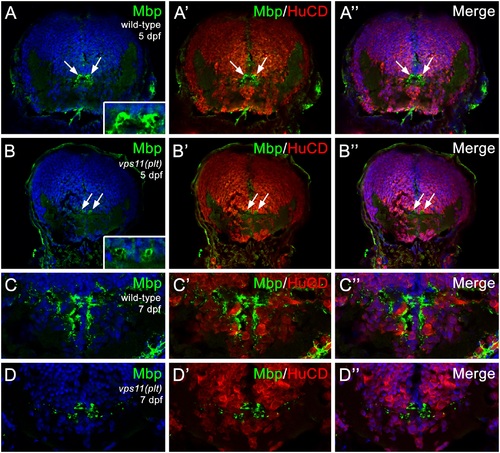

Progressive loss of myelination in zebrafish vps11(plt) mutants.Cryosectioned CNS tissue from vps11(plt) mutants and wild-type siblings were immunolabeled with Mbp (myelin; green) and HuCD (neurons; red) at 3 and 5 dpf. (A-A′′) Mbp immunolocalization to Mauthner axons in the hindbrain of wild-type animals at 5 dpf (arrows). (B-B′′) Mbp immunolocalization to Mauthner axons in the hindbrain of vps11(plt) mutants at 5 dpf (arrows). (C-C′′) Mbp immunolocalization in the hindbrain of wild-type animals at 7 dpf. (D-D′′) Significant reduction in Mbp immunolocalization in the hindbrain of vps11(plt) mutants at 7 dpf.

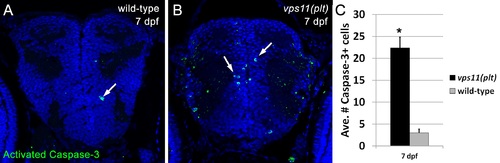

Significant cell death in the CNS of zebrafish vps11(plt) mutants.Activated Caspase-3 was performed on cryosectioned CNS tissue from vps11(plt) mutants and wild-type siblings at 7 days post-fertilization (dpf). A) Wild-type hindbrain shows minimal apoptotic cells (arrow). B) Many apoptotic cells were observed in the vps11(plt) mutants. C) Quantification of the average number of Caspase-3+ cells observed in the hindbrain of vps11(plt) mutants and wild-type siblings at 7 dpf. Asterisk indicates significantly different from control.

PHENOTYPE:
Fish:
Observed In:
Stage: Days 7-13
