Figure 2

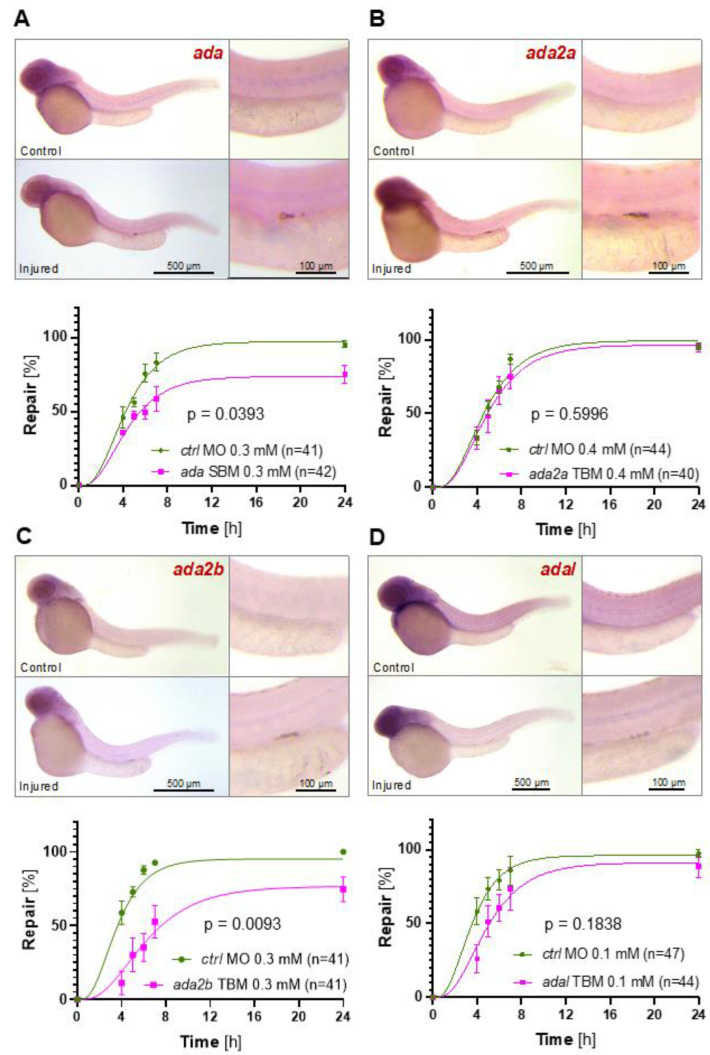

The involvement of adenosine deaminase family members in zebrafish pronephros repair. (A) In situ hybridization revealed upregulation of zebrafish ada. Depletion of zebrafish ada by a splice—(SBM) blocking morpholino oligonucleotides (MO) delayed the repair process. (B) In situ hybridization revealed upregulation of zebrafish ada2a. Depletion of zebrafish ada2a by a translation- (TBM) blocking morpholino oligonucleotides (MO) had no effect on the repair process. (C) In situ hybridization revealed upregulation of zebrafish ada2b. Depletion of zebrafish ada2b by a TBM delayed the repair process. (D) In situ hybridization revealed upregulation of zebrafish adal. Depletion of zebrafish adal by a TBM had no significant influence on the repair process (mean ± SEM; 2-way ANOVA).
