Fig. 6

ID

ZDB-IMAGE-200614-9

Genes

Publication

Castro et al., 2020 - Hcfc1a regulates neural precursor proliferation and asxl1 expression in the developing brain

All Figures

Figures for Castro et al., 2020


Figure Caption

Fig. 6

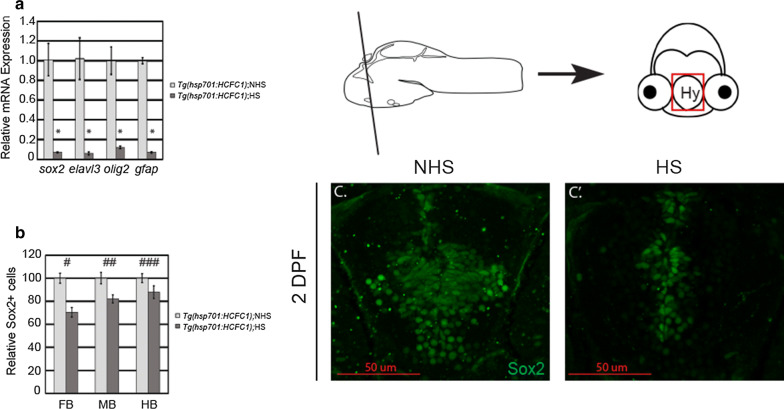

Over expression of HCFC1 decreases NPC number and differentiation. aTg(hsp701: HCFC1) were heat shocked according to the methods section and total RNA was isolated from control (No heat shock (NHS)) and heat shock larvae (HS). Quantitative PCR was performed to test the expression of sox2, elavl3, olig2, and gfap. Error bars represent standard error of the mean. N = 28/group/biological replicate. *p < 0.05. b The total number of Sox2 cells was quantified across forebrain (^#p = 4.88568E−05), midbrain (^##p = 0.004359), and hindbrain (^###p = 0.077). Error bars represent standard error of the mean. N = 5/group. c, c′ Representative images of 2 days post fertilization (DPF) Tg(hsp701:HCFC1) larvae (NHS or HS) stained with anti-Sox2 antibodies. Schematic demonstrates 2 DPF larval brain section with graphical inset of hypothalamus region (Hy) to specify region shown

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ BMC Neurosci.
