ZFIN Image: Inomata et al., 2019, Fig. 2


Figure Caption

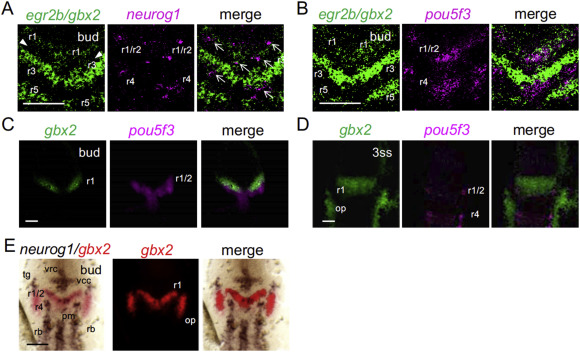

Fig. 2 Close association of the expression domains of neurog1 and pou5f3 in rhombomeres 1, 2, and 3. A–D. The relationships between the expression domains of neurog1 and pou5f3 in the neural plate were compared by two-color FISH with those of gbx2 and egr2b in r1 and r3/r5, respectively, at the bud (A–C) and three-somite (D) stages. Expression gaps between the gbx2 domain in r1 and egr2b domain in r3 are marked with arrowheads, and neurog1 domains are marked with arrows (A). (E) The expression of neurog1 and gbx2 was compared by conventional two-color WISH. Dorsal views with anterior to the top. For abbreviations, see the legend for Fig. 1. Scale bar, 100 μm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 457(1), Inomata, C., Yuikawa, T., Nakayama-Sadakiyo, Y., Kobayashi, K., Ikeda, M., Chiba, M., Konishi, C., Ishioka, A., Tsuda, S., Yamasu, K., Involvement of an Oct4-related PouV gene, pou5f3/pou2, in neurogenesis in the early neural plate of zebrafish embryos, 30-42, Copyright (2019) with permission from Elsevier. Full text @ Dev. Biol.
