Figure Caption

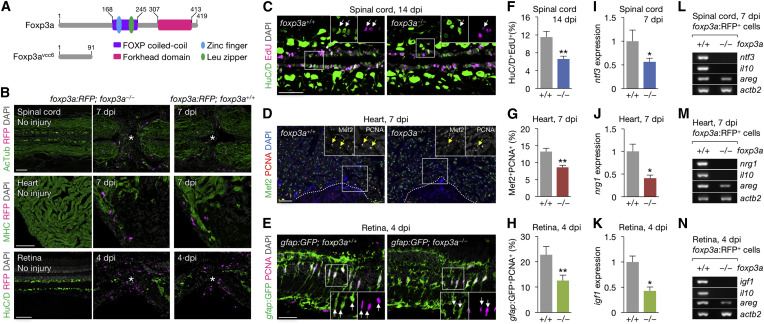

Fig. 7

Impaired Regeneration in Foxp3a-Deficient Zebrafish

(A) Foxp3a domain structure and predicted truncated product of the Foxp3a^vcc6 allele. Numbers indicate amino acid positions.

(B) Sections of Foxp3a-deficient (foxp3a^−/−) and WT (foxp3a^+/+) clutch-mate foxp3a:RFP fish. Asterisks indicate injury epicenter.

(C–E) Proliferation of newborn neurons (C), cardiomyocytes (D), and Müller glia (E). Insets show single-channel confocal slices (C and E) or epifluorescent images (D) of the demarcated regions. Arrows mark co-labeled cells. Dotted lines indicate the wound border.

(F–H) Quantification of (C), (D) and (E), respectively (mean ± SEM, n = 5–7).

(I–K) qRT-PCR analysis of regeneration factor genes (mean ± SEM, n = 6).

(L–N) Semi-qRT-PCR analysis of regeneration factor genes in purified foxp3a:RFP⁺ cells. +/+, foxp3a^+/+; −/−, foxp3a^−/−.

Confocal projections of z stacks are shown, except for the epifluorescent images in (D). ^∗p < 0.05, ^∗∗p < 0.01, Mann-Whitney U test. Scale bars, 50 μm. See also Figure S7.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 43, Hui, S.P., Sheng, D.Z., Sugimoto, K., Gonzalez-Rajal, A., Nakagawa, S., Hesselson, D., Kikuchi, K., Zebrafish Regulatory T Cells Mediate Organ-Specific Regenerative Programs, 659-672.e5, Copyright (2017) with permission from Elsevier. Full text @ Dev. Cell
