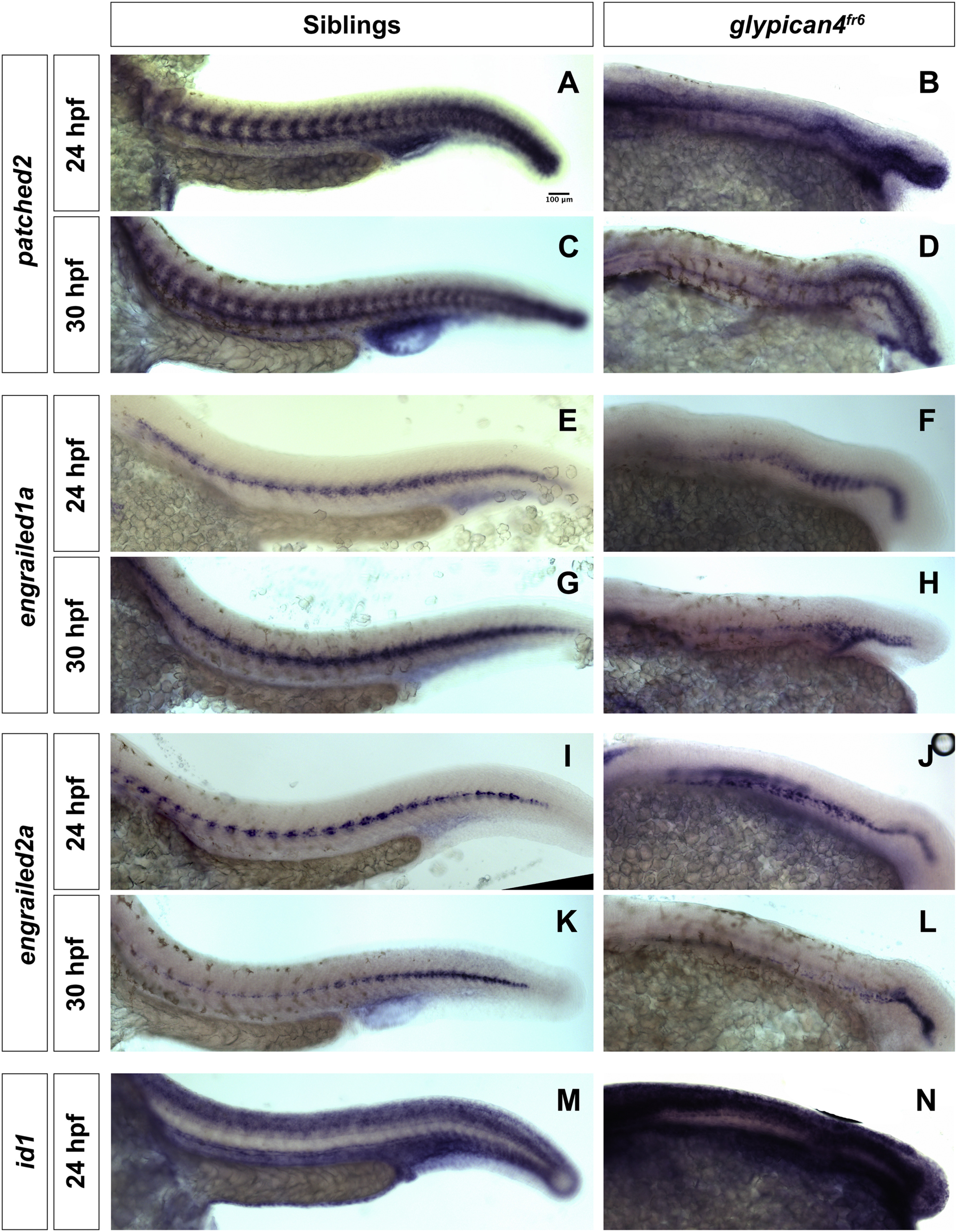

glypican4^fr6 mutants show reduced expression levels of patched2, engrailed1a and engrailed2a. (A–D) 10× lateral views of the expression of the Hh target patched2 in sibling and glypican4^fr6 mutant embryos at 24 and 30 hpf. (E-H) 10× lateral views of the expression of the Hh target engrailed1a in sibling and glypican4^fr6 mutant embryos at 24 and 30 hpf. (I-L) 10x lateral views of the expression of the Hh target engrailed2a in sibling and glypican4^fr6 mutant embryos at 24 and 30 hpf. These Hh targets show a drastic, increasing downregulation in glypican4^fr6 mutants over time compared to their siblings. (M-N) 10× lateral views of the expression of the Bmp target id1 in sibling and glypican4^fr6 mutant embryos at 24 hpf. This Bmp target shows a drastic upregulation in glypican4^fr6 mutants compared to their siblings.
