Fig. 5

ID

ZDB-IMAGE-161104-13

Genes

Publication

Pi-Roig et al., 2014 - Distinct tissue-specific requirements for the zebrafish tbx5 genes during heart, retina and pectoral fin development

All Figures

Figures for Pi-Roig et al., 2014


Figure Caption

Fig. 5

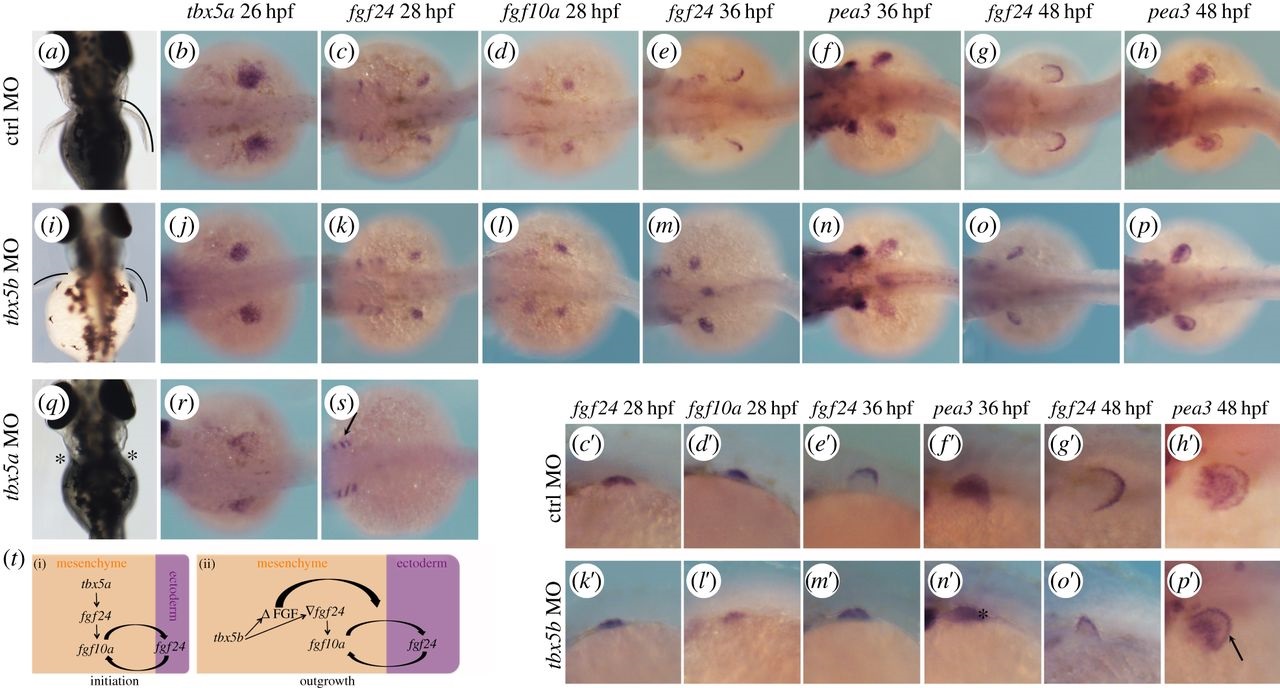

tbx5b knock-down causes a delay in pectoral fin growth. (a,i,q) Pectoral fin morphology at 3 dpf. Dorsal views are shown with anterior to the top. (b-h) Expression of the developing pectoral fin markers in control (ctrl) MO-injected embryos. (c′-h′) Higher magnifications of (c-h). (j-p) Pectoral fin markers expression in tbx5b-morphant embryos. (k′-p′) Higher magnifications of (k-p). (r,s) tbx5a morphants. (t) Model for the differential requirements for the tbx5 genes during pectoral fin development. b-h, j-p,r,s are dorsal views with anterior to the left. c′-h′,k′-p′ are lateral views with anterior to the left.
