Fig. 4
|
Figure Caption
Fig. 4

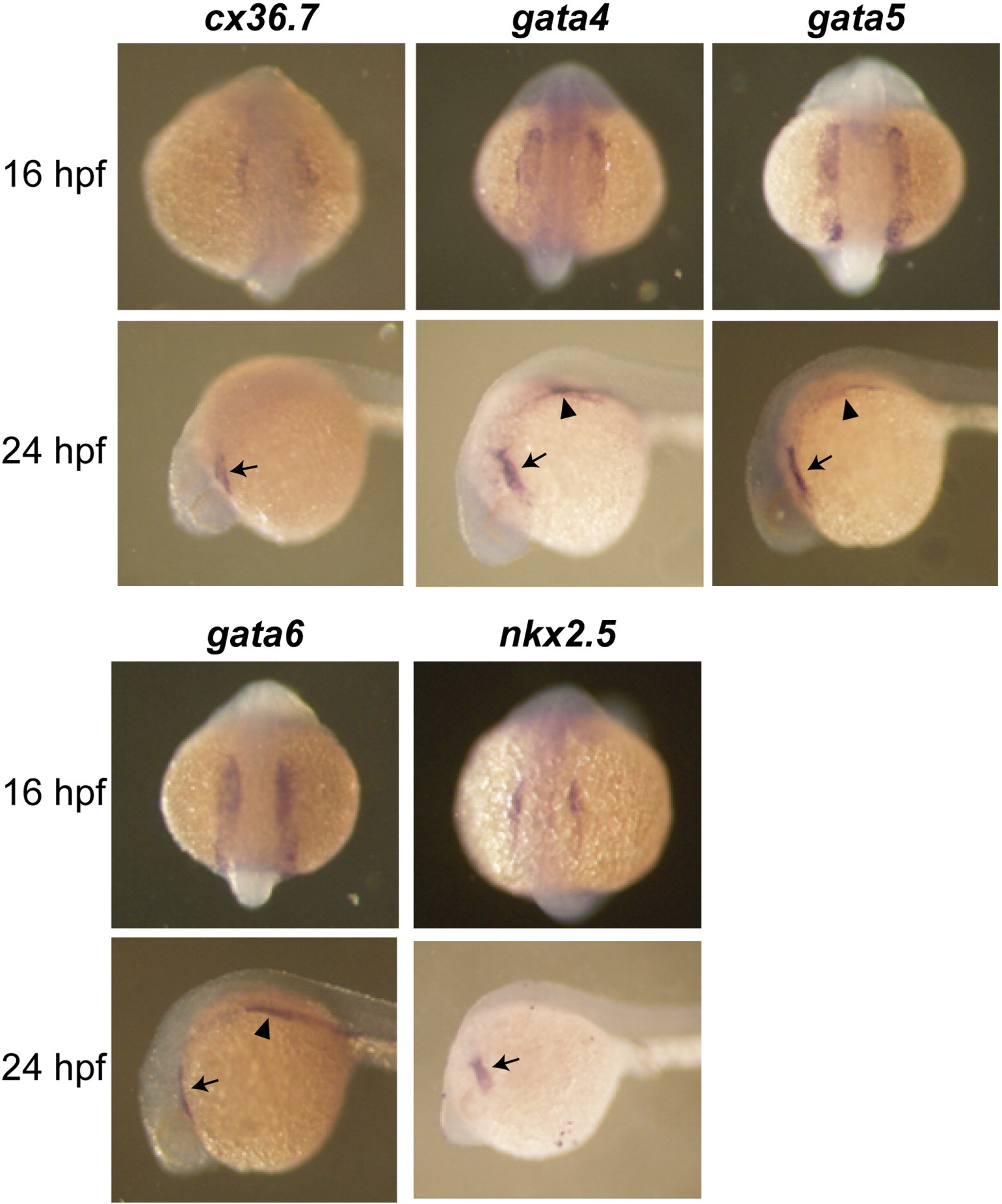

The expression of cx36.7, gata4, gata5, gata6 and nkx2.5 in zebrafish embryos. Whole mount in situ hybridization of zebrafish embryos at 16 hpf (top) and 24 hpf (bottom) was performed with antisense RNA probes specific to cx36.7, gata4, gata5, gata6 and nkx2.5. The cx36.7 expression was detected in the developing heart regions in which gata4, gata5, gata6 and nkx2.5 are expressed. Arrows, hearts; arrowheads, gut.
