ZFIN Image: Sisson et al., 2015, Fig. 3


Figure Caption

Fig. 3

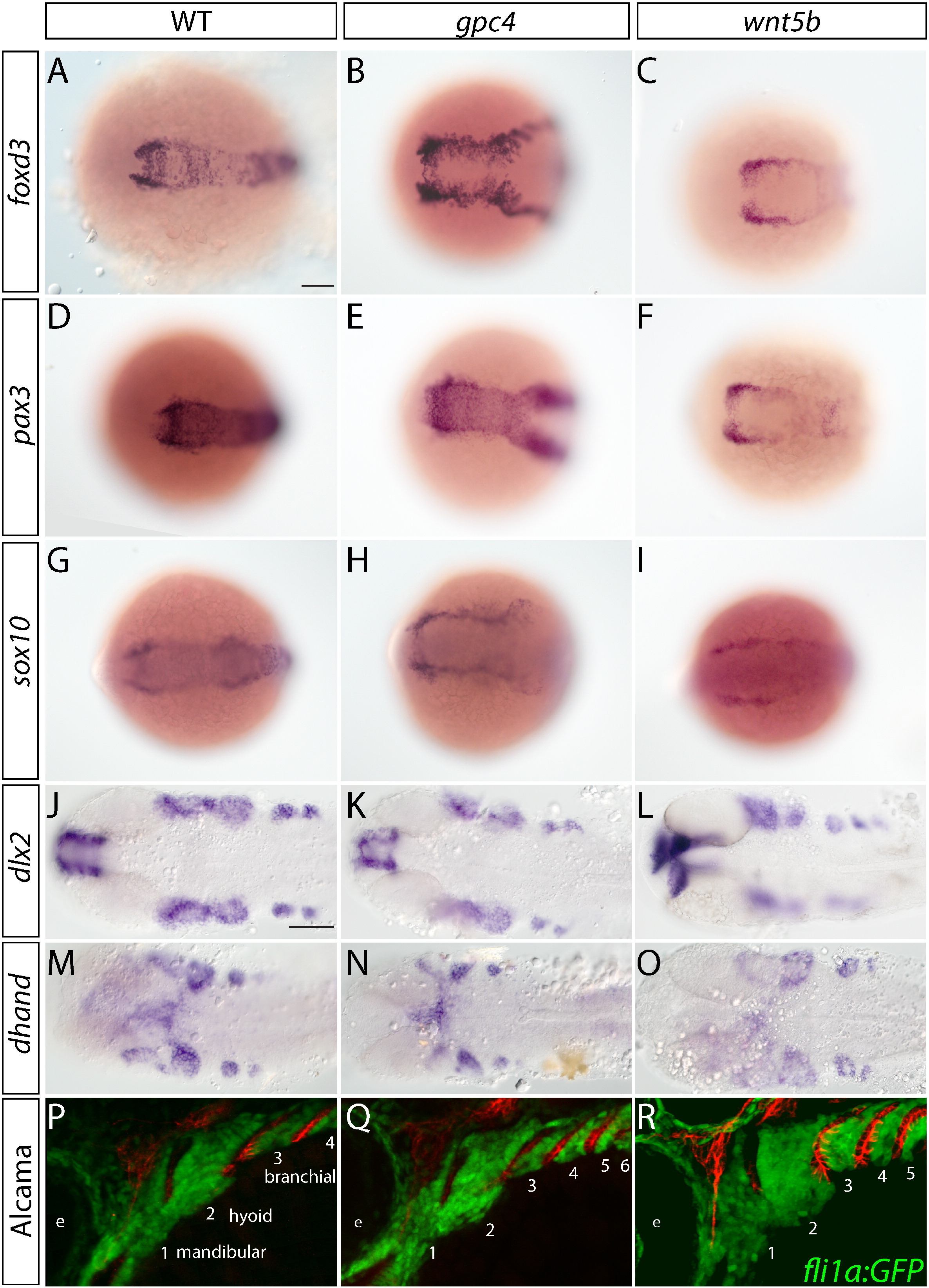

Cranial neural crest cell migration and specification is unaffected in gpc4 and wnt5b mutants. (A?O) Neural crest specification appears normal within gpc4 and wnt5b mutants Scale bar = 100 �m. (A?I) Pre-migratory neural crest markers. 6 somites. (J?O)Pharyngeal arch markers. (J?L) 28 hpf. (M?O) 32 hpf. (P?R) Migration of neural crest appears to be unaffected in gpc4 and wnt5b mutants when compared to wild type fish. Tg(fli1a:EGFP)^y1 embryos have neural crest derived cells labeled by GFP expression. Embryos were fixed at 33 hpf and stained with the Alcama (Zn5) antibody (red). Pharyngeal arches are numbered. Scale bar = 50 �m.
