Fig. 8
|
Figure Caption
Fig. 8

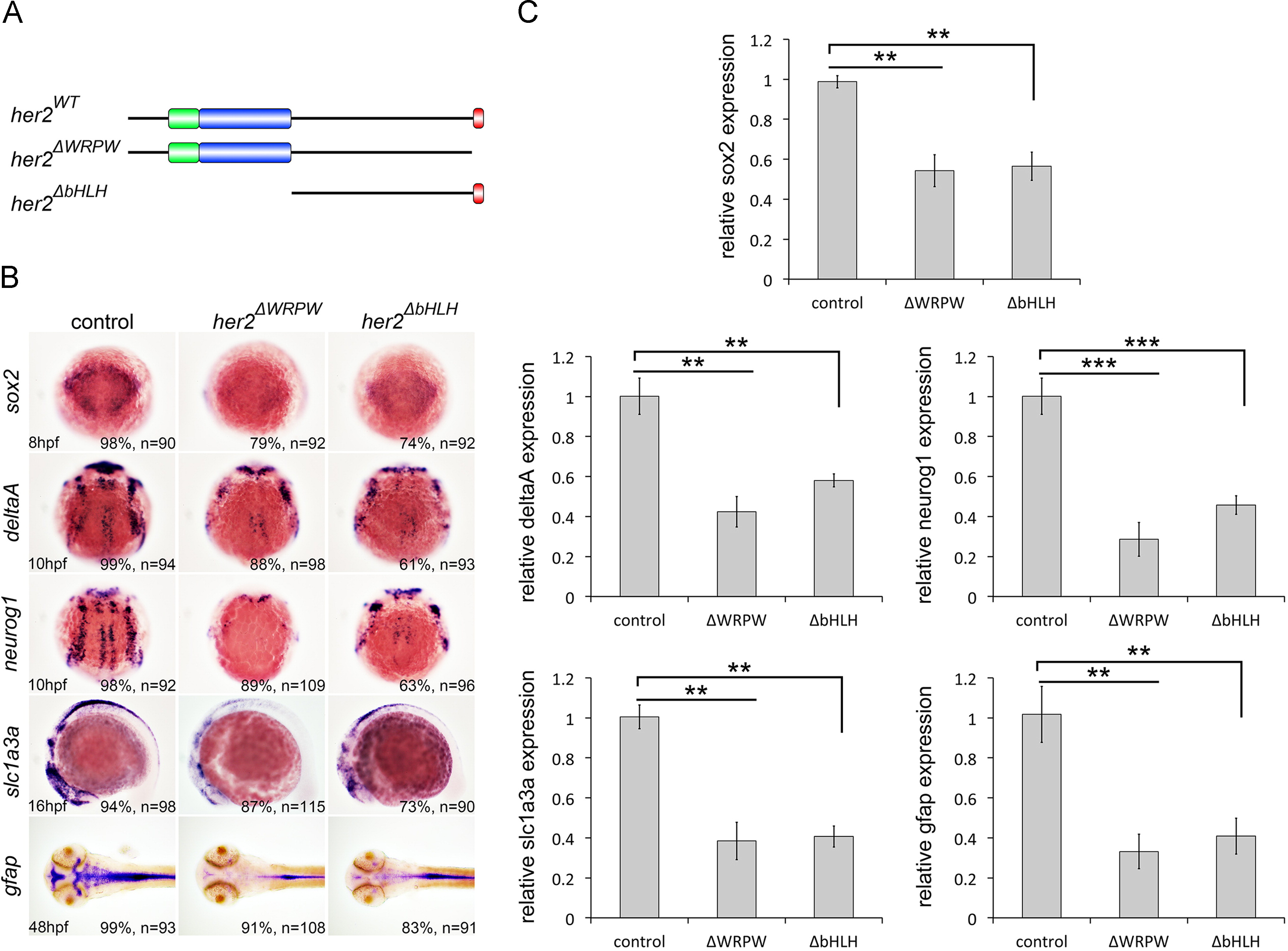

Resemblance between the phenotypes of her2ΔbHLH- or her2ΔWRPW-injected embryos and those of her2 morphants. (A) Schematic illustration of her2ΔbHLH and her2ΔWRPW deletion constructs. (B) In situ hybridization showing injection of either her2ΔbHLH or her2ΔWRPW was sufficient to downregulate markers for neural progenitors and neuronal and glial derivatives, as observed in Her2 morphants. The stages of the embryos are shown in the bottom- left corner. These results were confirmed by qPCR (C). *, p<0.05; **, p<0.01.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 397(1), Cheng, Y.C., Chiang, M.C., Shih, H.Y., Ma, T.L., Yeh, T.H., Huang, Y.C., Lin, C.Y., Lin, S.J., The transcription factor hairy/E(spl)-related 2 induces proliferation of neural progenitors and regulates neurogenesis and gliogenesis, 116-28, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
