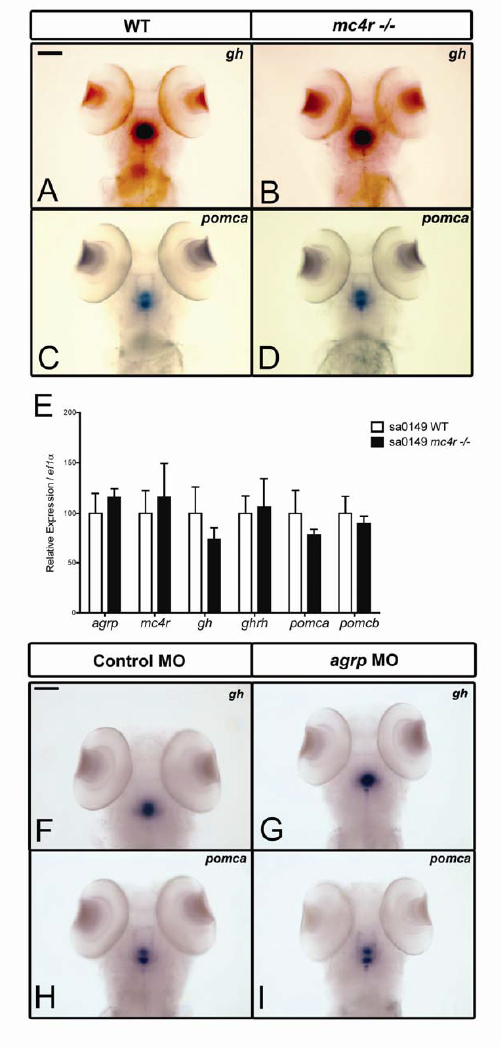

Fig. S3

No Effect of agrp MO in the mc4r-/- Background

(A-D) Whole mount in situ hybridization of gh (A-B) and pomca (C-D) in uninjected sa0149 wild type fish (A and C) or un-injected sa0149 mc4r -/- fish (B and D) at 4dpf. Scale bar: 100µm. (E) Relative expression levels of agrp, mc4r, gh, ghrh, pomca, pomcb were analyzed by Q-PCR. Offspring from sa0149 sibling wild type and sa0149 mc4r-/- matings were raised at standard condition. 30 uninjected embryos from each condition were divided into 3 groups and sacrificed at 4dpf for RNA extraction and cDNA synthesis. Wild type group was normalized to 100% and all gene expression was normalized to the house-keeping gene, ef1a. Results are expressed as mean + s.e.m., and statistical analysis was done by unpaired t-test (Not Significant for all genes). (F-I) Whole mount in situ hybridization of gh (F-G) and pomca (H-I) in mc4r -/- fish injected with 2.5ng standard control (F and H) or agrp morpholino oligonucleotides (G and I). Scale bar: 100µm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell Metabolism, 15(2), Zhang, C., Forlano, P.M., and Cone, R.D., AgRP and POMC neurons are hypophysiotropic and coordinately regulate multiple endocrine axes in a larval teleost, 256-264, Copyright (2012) with permission from Elsevier. Full text @ Cell Metab.
