foxP2 mutant has normal morphology and CNS patterning.

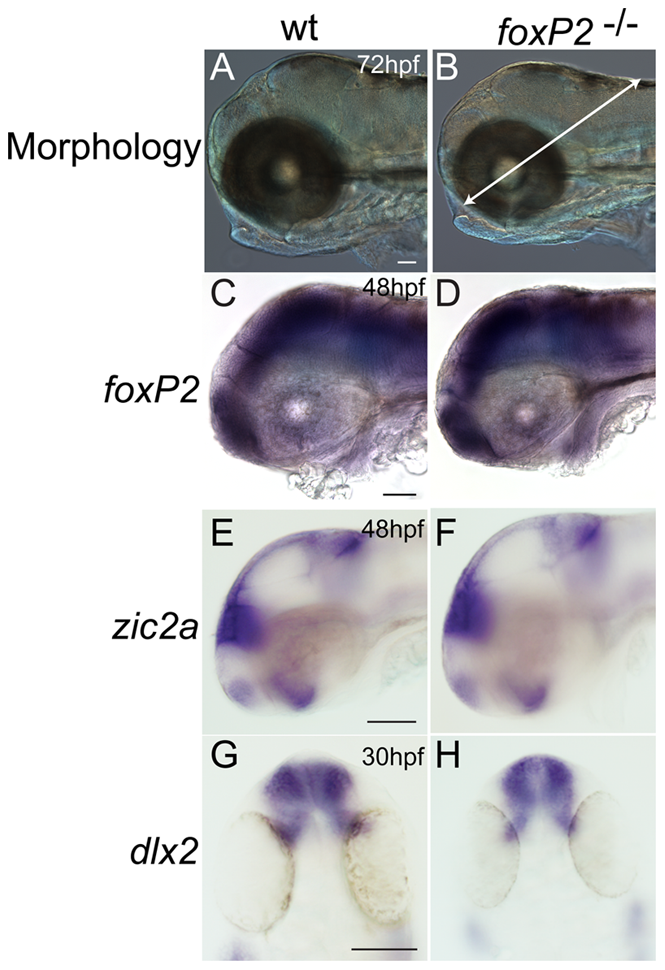

Whole-mount embryos, brightfield images, scale bar = 50 μm. Lateral views, rostral to the left (A-F); dorsal views, rostral to the top (G, H). (A, B) Gross head morphology is unchanged in mutants at 72hpf. Arrow in (B) shows line used to measure brain size, from the midbrain-hindbrain boundary to the edge of the head by dissecting the midpoint of the lens. (C-D) mRNA expression of foxP2 transcript is unchanged in intensity and pattern in foxP2 mutants. (E-H) in situ expression patterns and intensity of zic2a and dlx2 is unchanged in mutants compared to wild-type embryos.
