Fig. 4

ID

ZDB-IMAGE-101007-11

Genes

Publication

Hammond et al., 2010 - Cabin1 expression suggests roles in neuronal development

All Figures

Figures for Hammond et al., 2010


Figure Caption

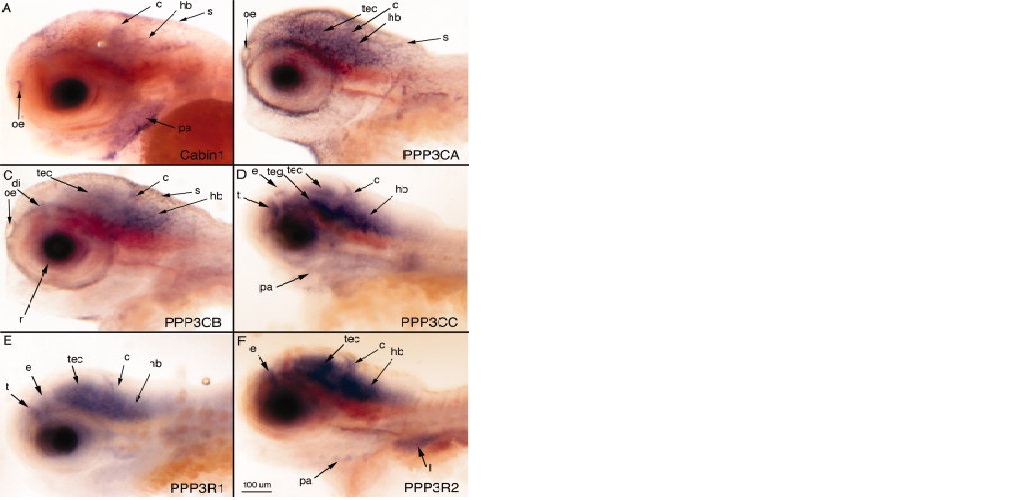

Fig. 4 Cabin1 and calcineurin expression overlaps in the central nervous system (CNS). Calcineurin expression is widespread throughout the developing nervous system. Expression of Cabin1 coincides with one or more calcineurin genes in the olfactory epithelium (oe), cerebellum (c), and hindbrain (hb). A–F: Lateral views of the head at 72 hpf after whole embryo mRNA in situ hybridization (ISH) using probes for the following: Cabin1 (A) and all five calcineurin subunits: PPP3CA (B), PPP3CB (C), PPP3CC (D), PPP3R1 (E), PPP3R2 (F). Calcineurin expression at 24–72 hpf can been viewed in supplementary material (S1). di, diencephalon; e, epiphysis; l, liver; pa, pharyngeal arches; r, retina; s, skin; t, telencephalon; tec, tectum; teg, tegmentum. Some embryos have been manually deyolked.
