Fig. 6

ID
ZDB-IMAGE-090515-31
Genes
Source
Figures for Martin et al., 1995
Figure Caption

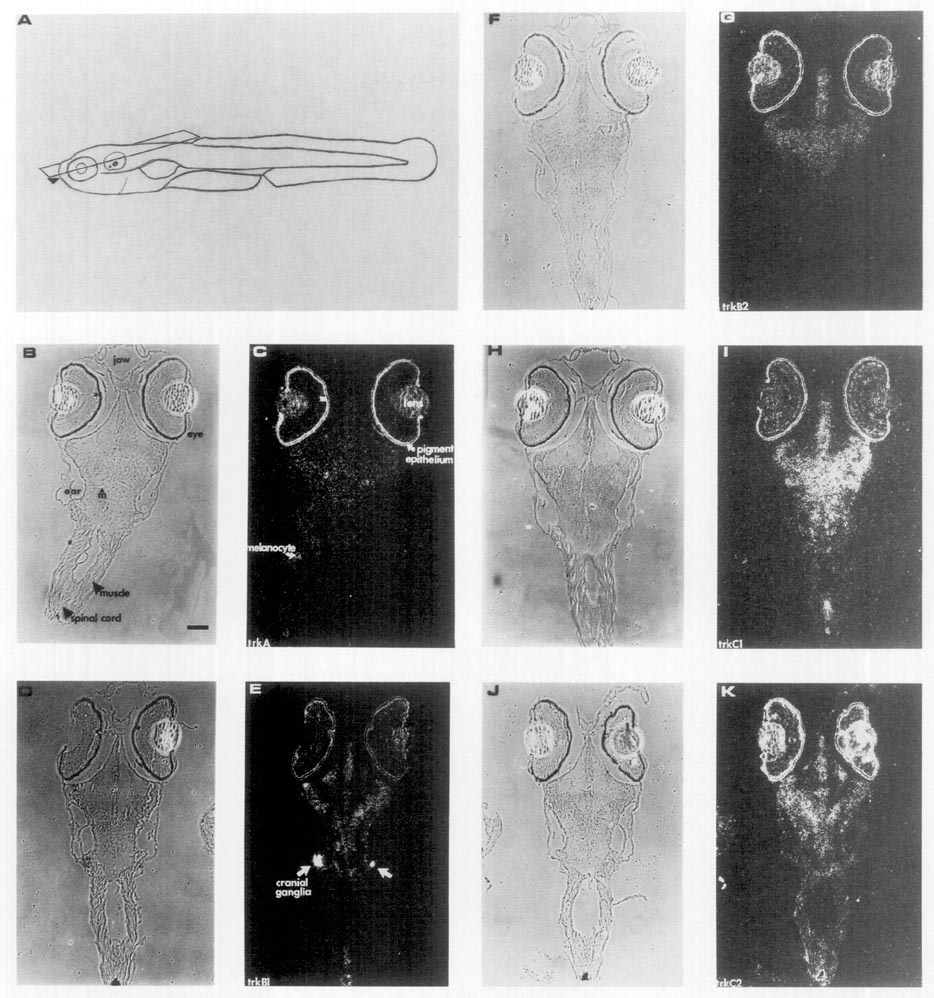

Fig. 6 Zebrafish trk genes are expressed in the central and peripheral nervous system. Five RNA probes labeled with [35S]UTP specific for the full-length transcripts of the trk genes were used to examine expression 6 days after fertilization by in situ hybridization. (A) Schematic indicating the most dorsal plane of the sections of the zebrafish embryo. The position of the subsequent sections is indicated by the arrowhead. (C) trkA, (E) trkB1, (G) trkB2, (I) trkC1, and (J) trkC2 are dark-field photomicrographs. B, D, F, H, and J are phase photomicrographs of C, E, G, I, and K, respectively. The m and arrowhead in B marks the cell body of the Mauthner cell. The retinal pigmented epithelium melanocytes and iridiophores contain a chromophore which causes the formation of silver grains in the photographic emulsion and is not hybridization signal. Such a melanocyte (or iridiophore) is labeled with an arrow in C to illustrate this phenomenon. The lens appears white, but this is not hybridization signal, as it appeared the same without hybridization. The scale bar is 50 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 169, Martin, S.C., Marazzi, G., Sandell, J.H., and Heinrich, G., Five Trk receptors in the zebrafish, 745-758, Copyright (1995) with permission from Elsevier. Full text @ Dev. Biol.
