ZFIN Image: Martin et al., 1995, Fig. 5


Figure Caption

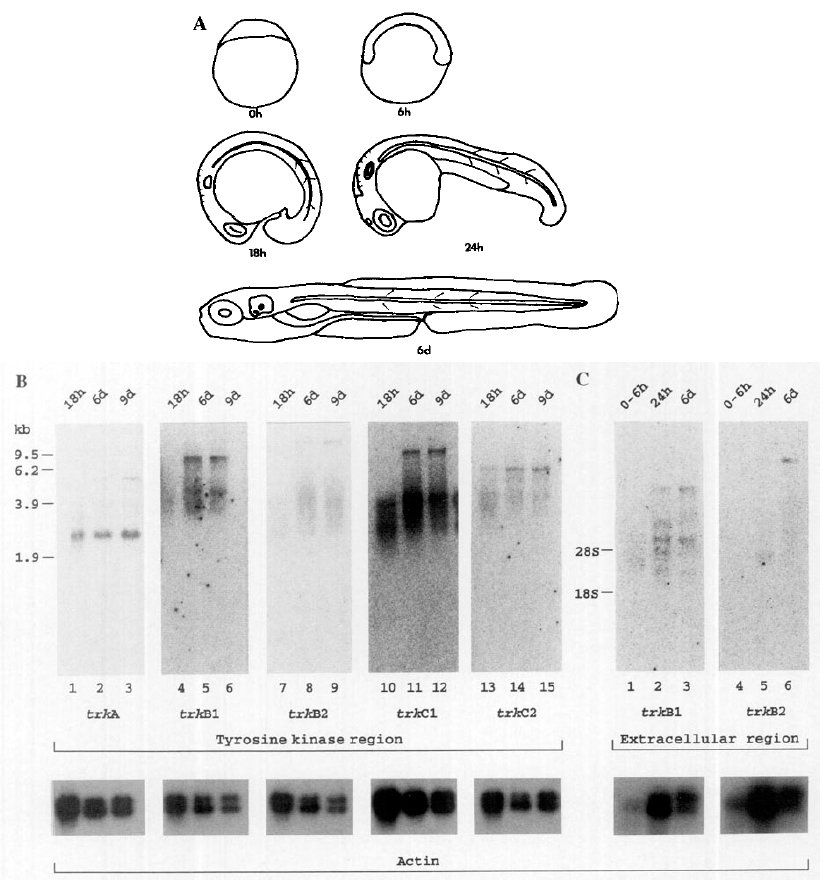

Fig. 5 Northern blot analysis of zebrafish trk expression. (A) Diagrammatic outline of zebrafish developmental stages at the indicated stages in hours and days after fertilization, (B and C) Aliquots of 10 μg (B) or 2 μg (C) of poly(A)⁺ RNA from the time after fertilization is indicated above each lane. Hybridizations were carried out at 68°C in 2x SSC. The identity of the trk probe used is indicated below each panel. Different size markers were used for the blots in B and C. RNA markers for B are in kilobases. The positions of 28S and 18S rRNAs are marked for C. The lower panel is the result of hybridizations of each filter to chicken β-actin. The data were collected with a Fuji BAS 2000 Bioimager, with the exception of the actin signals that were recorded on X-ray film.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 169, Martin, S.C., Marazzi, G., Sandell, J.H., and Heinrich, G., Five Trk receptors in the zebrafish, 745-758, Copyright (1995) with permission from Elsevier. Full text @ Dev. Biol.
