Fig. 5

ID
ZDB-IMAGE-070821-93
Genes
Source
Figures for Hall et al., 2006
Figure Caption

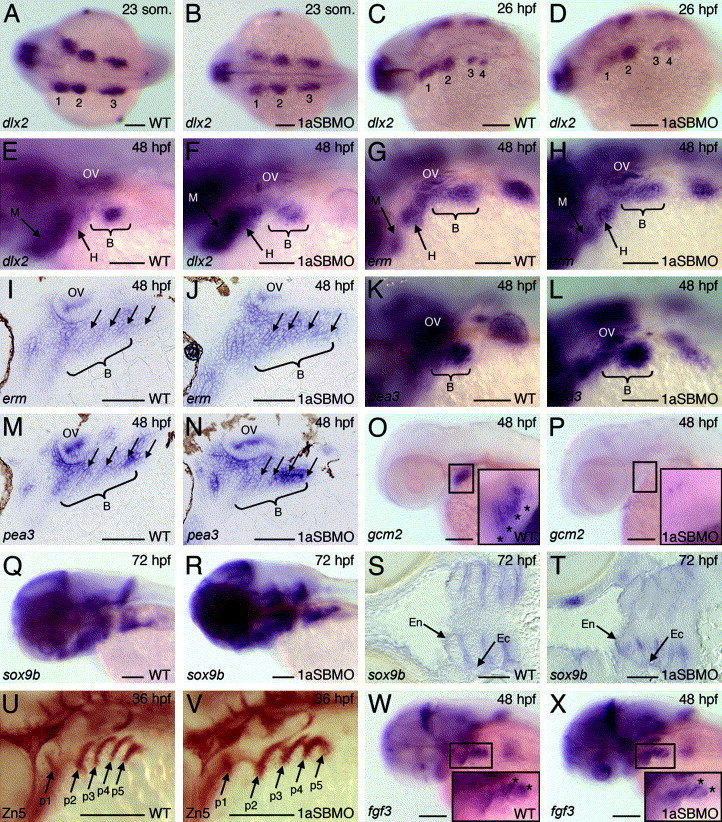

Fig. 5 Fgfrl1a is essential for gcm2 expression within the pharyngeal epithelium. (A, C and E) Neural crest expression of dlx2 in 23 somite (dorsal view), 26 hpf (dorsolateral view) and 48 hpf (lateral view) wildtype embryos, respectively. (B, D and F) dlx2 expression in 23 somite, 26 hpf and 48 hpf Fgfrl1a morphant embryos, respectively. Neural crest streams are numbered. (G/I and H/J) Lateral views of erm expression within pharyngeal domain of 48 hpf wildtype and Fgfrl1a morphant embryos, respectively. (G/H and I/J) Lateral views and equivalent sagittal sections, respectively. Arrows mark pharyngeal pouches within branchial domain. (K/M and L/N) Lateral views of pea3 expression within pharyngeal domain of 48 hpf wildtype and Fgfrl1a morphant embryos, respectively. (K/L and M/N) Lateral views and equivalent sagittal sections, respectively. Arrows mark pharyngeal pouches within branchial domain. (O and P) Lateral views of gcm2 expression within pharyngeal domain of 48 hpf wildtype and Fgfrl1a morphant embryos, respectively. Inset represents enlarged views of boxed regions. Asterisks mark branchial arches. (Q/S and R/T) sox9b expression within pharyngeal domain of 72 hpf wildtype and Fgfrl1a morphant larvae, respectively. (Q/R and S/T) Lateral views and equivalent frontal sections, respectively. (U and V) Lateral views of Zn5-stained pharyngeal pouch endoderm within 36 hpf wildtype and Fgfrl1a morphant embryos, respectively. (W and X) Lateral views of fgf3 expression within pharyngeal domain of 48 hpf wildtype and Fgfrl1a morphant embryos, respectively. Inset represents enlarged views of boxed regions. Asterisks mark pharyngeal pouches. Abbreviations: B, branchial arches; Ec, pharyngeal ectoderm; En, pharyngeal endoderm; H, hyoid arch; M, mandibular arch; OV, otic vesicle; p1–5, pharyngeal pouches 1–5. Scale bars: 100 μm in A–X.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 123(12), Hall, C., Flores, M.V., Murison, G., Crosier, K., and Crosier, P., An essential role for zebrafish Fgfrl1 during gill cartilage development, 925-940, Copyright (2006) with permission from Elsevier. Full text @ Mech. Dev.
