Fig. 4
|
Figure Caption

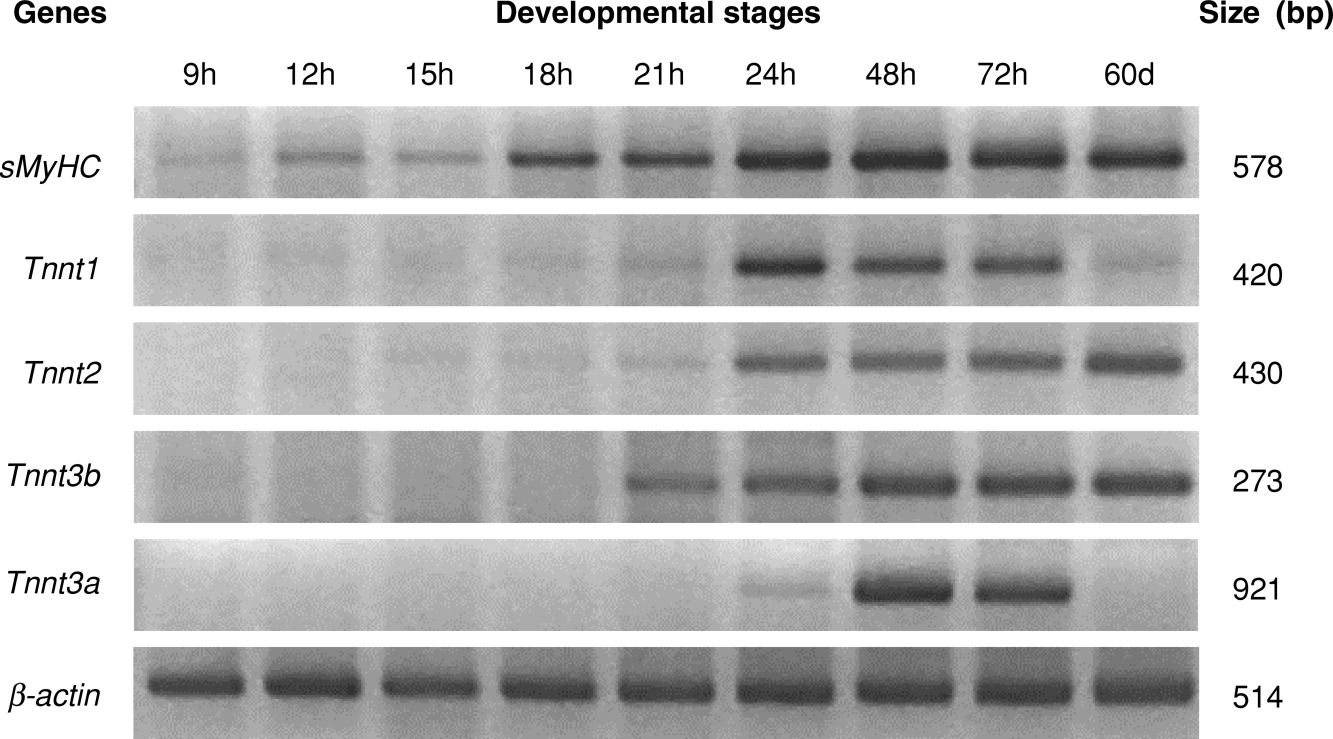

Fig. 4 Tnnt temporal expression patterns in developing zebrafish embryos as detected by reverse transcriptase-polymerase chain reaction (RT-PCR). Total RNA was isolated from different developmental stages, and primers specific for sMyHC, Tnnt1, Tnnt2, Tnnt3a, and Tnnt3b were used for RT-PCR. β-actin was used as an internal control. Numbers in the right panel indicate the molecular mass of RT-PCR products.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev. Dyn.
