FIGURE 6

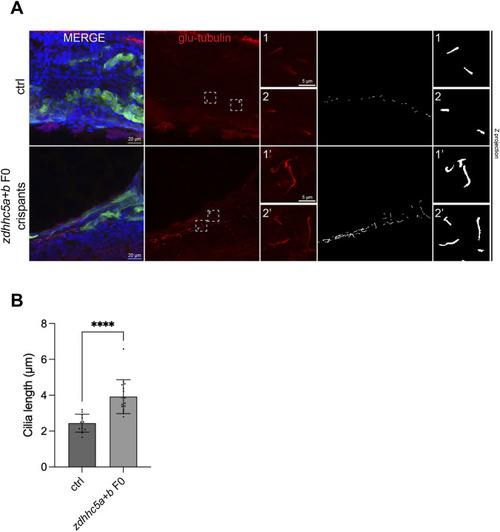

Depletion of zdhhc5 isoforms in zebrafish causes ciliary elongation in the pronephros. (A) Confocal images of the posterior pronephric duct showing elongated cilia in zdhhc5a + b depleted F0 crispants compared to ctrl RNPs injected Tg(wt1b:GFP) zebrafish. (B) Comparison of the mean ciliary length between ctrl and F0 crispant fish. ****, p < 0.0001 using unpaired t-test. Based on data from 11 fish for ctrl and 16 fish for zdhhc5a + b F0 crispants in 2 independent experiments. |
