Fig. 4

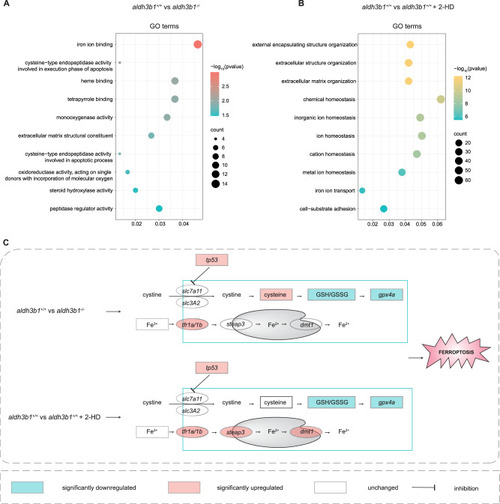

Alterations of ferroptosis related pathways in aldh3b1^-/- and in 2-HD treated zebrafish.
A GO enrichment analysis of differential genes showed top altered pathways in aldh3b1^-/- compared to aldh3b1^+/+ larvae. B GO enrichment analysis of differential genes showed the top altered pathways in aldh3b1^+/+ 5dpf larvae treated with or without 2-HD. C Integrative transcriptome and metabolome analysis uncovered ferroptosis signaling alterations induced by aldh3b1 deficiency and 2-HD treatment. GO, Gene Ontology. Statistical significance for GO enrichment in Fig. 4A, B was determined using a two-sided Fisher’s exact test. P values were adjusted for multiple comparisons using the Benjamini-Hochberg method.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	y1Tg/y1Tg aldh3b1^{zf4314/zf4314}
Condition:	chemical treatment by environment: 2-hexadecenal
Observed In:	cell-substrate adhesion chemical homeostasis extracellular matrix organization extracellular structure organization inorganic ion homeostasis iron ion binding iron ion transport monooxygenase activity regulation of peptidase activity tetrapyrrole binding
Stage:	Day 5
