FIGURE

Fig. 5

ID

ZDB-FIG-260408-61

Publication

Zhang et al., 2026 - OGT mediates O-GlcNAcylation of MEIS2 and affects palatal osteogenic development

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

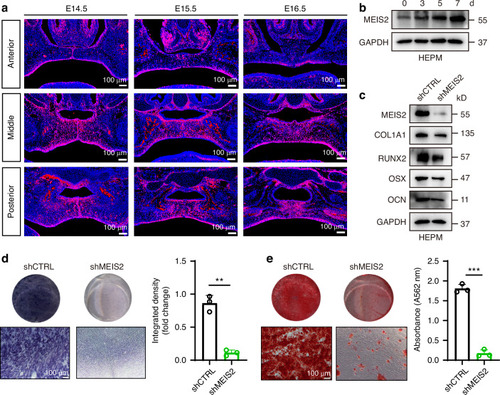

MEIS2 essential for palatal osteogenesis. a Immunofluorescence staining of MEIS2 on coronal sections from E14.5 to E16.5. b WB analysis of MEIS2 protein levels during osteogenic differentiation. c Expression of osteogenic markers (COL1A1, RUNX2, OSX, and OCN) and the protein levels of HEPM cells treated as indicated and assessed by WB. d, e ALP and ARS staining of HEPM cells treated as indicated. n = 3 biologically independent experiments. Data were indicated by mean ± SD. P-values were computed by two-tailed t-test or one-way ANOVA followed by Tukey’s multiple comparisons test, *P < 0.05, **P < 0.01
