Fig. 1.

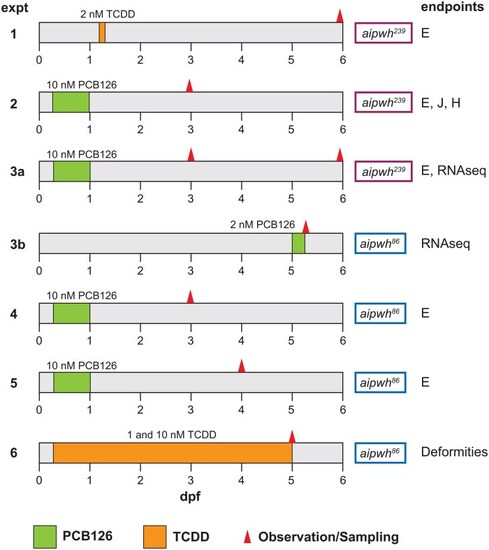

Exposure experiments conducted in AIP-deficient zebrafish. The figure illustrates the various exposure designs, sampling times, mutant lines, and endpoints used in the different experiments. For additional details, see the text, Table 1, and Figs S5–S11. Abbreviations: TCDD: 2,3,7,8-tetrachlorodibenzo-p-dioxin; PCB126: 3,3′,4,4′,5-pentachlorobiphenyl; dpf: Days postfertilization; E: Pericardial and yolk-sac edema; J: Jaw malformation; H: Heart malformation (tube heart); RNAseq: RNA-sequencing.
