Fig. 7

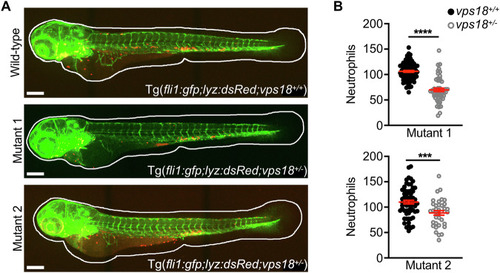

Zebrafish larvae deficient for Vps18 recapitulate the patient’s phenotype.

A, B Exemplary maximum intensity projections (A) and total neutrophil counts (B) of vps18^+/+ and vps18^+/- mutant 1 and 2 zebrafish larvae at 3 dpf. Endothelial cells, green. Neutrophils, red. Scale bars, 200 μm. Mean ± SEM of ≥ 36 individual larvae of ≥7 independent experiments. ***P < 0.001, ****P < 0.0001. Unpaired t test.

Expression Data

Genes:	DsRed2 EGFP
Fish:	vps18^mde403/+; nz50Tg/nz50Tg; y1Tg/y1Tg vps18^mde404/+; nz50Tg/nz50Tg; y1Tg/y1Tg
Anatomical Terms:	neutrophil vasculature
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	vps18^mde403/+; nz50Tg/nz50Tg; y1Tg/y1Tg vps18^mde404/+; nz50Tg/nz50Tg; y1Tg/y1Tg
Observed In:	neutrophil neutrophil apoptotic process neutrophil differentiation
Stage:	Protruding-mouth

Phenotype Detail
