FIGURE

Figure 3.

ID

ZDB-FIG-251105-32

Publication

Hall et al., 2025 - Comparison of the Differing Impacts of Lowered N-Acetylglucosaminyltransferase-Ia/b Activity on Motor and Sensory Function in Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

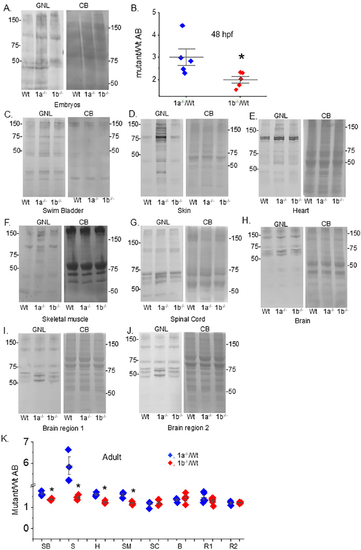

Figure 3.

Comparison of oligomannosylated protein in mutant and Wt AB fish strains. Lectin blot and Coomassie blue-stained gels of embryo (48 hpf) (A), and tissues from adult strains (C–J). Quantification of the oligomannosylated proteins from embryos (n = 5; Panel (B)), and adult tissues, including swim bladder (SB, n = 3), skin (S, n = 3), heart (H, n = 3), skeletal muscle (SM, n = 3), spinal cord (SC, n = 3), brain (B, n = 4), brain regions 1 (R1, n = 5) and 2 (R2, n = 3) (Panel (K)). Brain regions 1 includes olfactory bulb, telencephalon, habenula, and about half of optic tectum, while brain region 2 includes about half of the optic tectum, cerebellum, and medulla. Numbers adjacent to the blots signify protein markers (in kDa). Data were compared Student’s t-test (* p at 0.02).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mgat1a^{ecu301/ecu301} (AB) mgat1b^{ecu300/ecu300} (AB)
Observed In:	brain protein N-acetylglucosaminyltransferase activity heart protein N-acetylglucosaminyltransferase activity integument protein N-acetylglucosaminyltransferase activity skeletal muscle protein N-acetylglucosaminyltransferase activity spinal cord protein N-acetylglucosaminyltransferase activity swim bladder protein N-acetylglucosaminyltransferase activity whole organism protein N-acetylglucosaminyltransferase activity
Stage Range:	Long-pec to Adult

Phenotype Detail
