Fig. 4

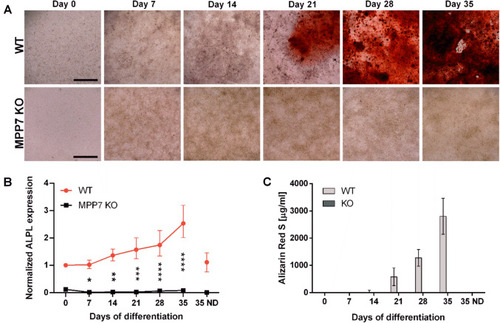

Mineralization and ALPL expression are abolished in MPP7-KO cells. Wild-type (WT) and MPP7-KO HOS cells were cultured in osteogenic differentiation medium and analyzed every 7 days up to day 35. A Representative light microscopy images of differentiating WT and MPP7-KO cells stained with Alizarin Red S to detect calcium deposits (red). Scale bars represent 1 mm. B Relative mRNA expression of alkaline phosphatase (ALPL) as determined by RT-qPCR. C Quantification of Alizarin Red S staining by spectrophotometry. Data represent mean ± SD of three independent biological replicates (N = 3), *P ≤ 0.05; **P ≤ 0.01
