Fig. 6

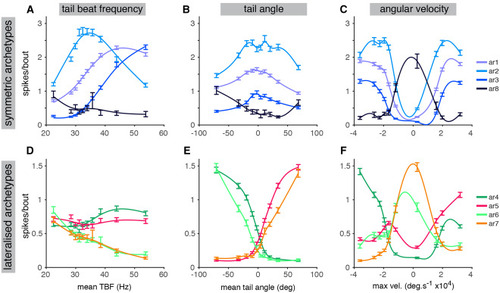

Functional archetypes have distinct kinematic tuning (A–F) Kinematic tuning of neurons belonging to symmetric (A–C) and lateralized (D–F) functional archetypes, showing OASIS-inferred spikes per swim bout as a function of (A and D) mean tail-beat frequency; (B and E) mean tail angle during first 120 ms of the swim; (C and F) peak angular velocity. For each kinematic, 10 bins were defined containing an equal density of data points. Data shows mean SEM across neurons assigned to each archetype with superimposed cubic spline fits. Number of cells: n = 2,349 (ar1), 1,047 (ar2), 1,405 (ar3), 1,826 (ar4), 1,821 (ar5), 585 (ar6), 677 (ar7), and 231 (ar8).
