FIGURE

Fig. 1

ID

ZDB-FIG-250903-55

Publication

Wu et al., 2025 - Ace2 mutation disrupts amino acid absorption, impairs growth, and alters microbiota dynamics in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

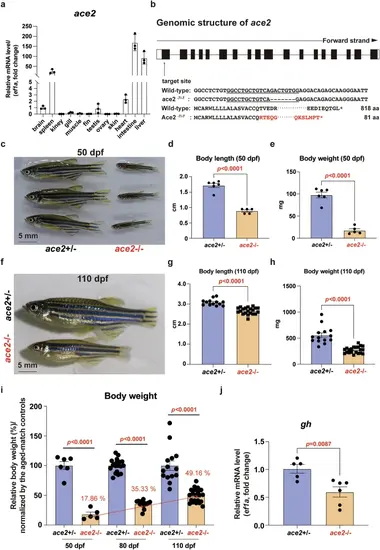

Disruption of Ace2 in zebrafish lead to growth retardation. a Quantitative real‑time PCR analysis of ace2 mRNA expression in different zebrafish tissue (n = 3/each group), normalized to ef1a as the internal control. b Schematic representation of the genomic structure of zebrafish ace2 and the target site of CRISPR. Gross morphology (c), body length (d) and body weight (e) of zebrafish ace2 homozygous mutants (ace2−/−, n = 5) and sibling heterozygous controls (ace2+/−, n = 6) at 50 dpf. Gross morphology (f), body length (g) and body weight (h) of zebrafish ace2 homozygous mutants (ace2−/−, n = 21) and sibling heterozygous controls (ace2+/−, n = 14) at 110 dpf. i The relative body weight was normalized the aged-match controls at 50, 80, and 110 dpf (50 dpf: ace2+/−, n = 6; ace2−/−, n = 5; 80 dpf: ace2+/−, n = 19; ace2−/−, n = 13; 80 dpf: ace2+/−, n = 14; ace2−/−, n = 21). j The growth hormones (GH) encoded gene gh mRNA expression levels in zebrafish pituitary at 80 dpf assessed by quantitative real‑time PCR analysis (ace2+/−, n = 5; ace2−/−, n = 6). The significance was analyzed by Student’s t-test. (**P < 0.01; ***P < 0.001).

Expression Data

Genes:	ace2 gh1
Fish:	WT ace2^{syu701/syu701} ace2^syu701/+
Anatomical Terms:	brain gill heart hypophysis intestine liver spleen testis
Stage Range:	Days 45-89 to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ace2^{syu701/syu701}
Observed In:	hypophysis whole organism
Stage Range:	Days 45-89 to Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Commun Biol
