Fig. 1

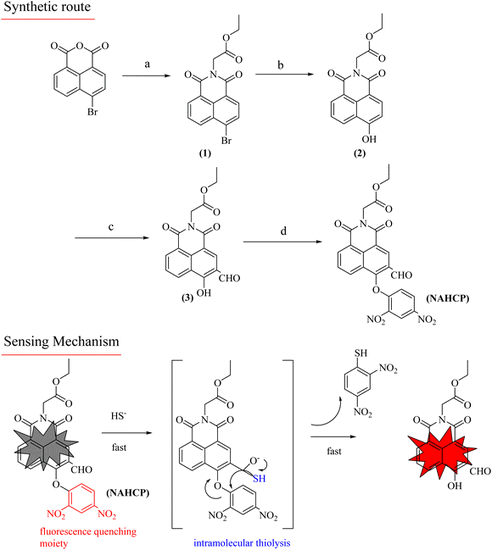

Schematic diagram of the synthesis route and sensing mechanism of NAHCP: (a) glycine ethyl ester hydrochloride, triethylamine, EtOH, 40 °C, 4 h; (b) N-hydroxyphthalimide, K2CO3, and DMF, 110 °C, 2 h; (c) hexamethylenetetramine and F3CCOOH, 80 °C, 4 h; (d) 2,4-dinitrofluorobenzene and triethylamine, RT, 3 h.
