Figure 3

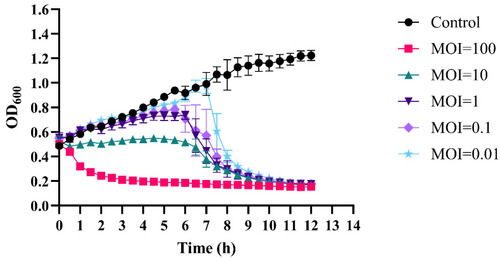

Phage–bacteria growth kinetics at different MOIs. The lytic activity of phiLCL12 against the LCL12 host was evaluated at five different MOIs. Data represent the mean of the measurements recorded every 30 min over a 12 h period, with the standard deviation (SD) indicated using error bars. Each experiment was conducted in triplicate to confirm the reliability of the results. |
