FIGURE

Fig. 6.

ID

ZDB-FIG-250109-174

Publication

Rolfs et al., 2024 - myh9b is a critical non-muscle myosin II encoding gene that interacts with myh9a and myh10 during zebrafish development in both compensatory and redundant pathways

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6.

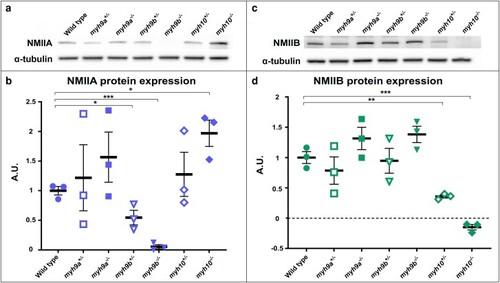

NMIIA and NMIIB protein levels in the zebrafish myh mutants. a) Representative western blot of whole larvae extracts at 96 hpf for NMIIA protein with alpha-tubulin control for each of the myh mutants. b) Quantification of NMIIA protein in the myh mutants. c) Representative western blot of whole larvae extracts at 96 hpf for NMIIB protein with alpha-tubulin control for each of the myh mutants. d) Quantification of NMIIB protein in the myh mutants. +/− SEM bars shown for all graphs. N = 3 independent experiments for each protein analyzed. *P < 0.05, **P < 0.01, and ***P < 0.005.

Expression Data

Genes:	myh9a myh10
Fish:	WT myh9a^{sa20632/sa20632} myh9b^{mke414/mke414} myh10^{mke508/mke508} myh9a^sa20632/+ myh9b^mke414/+ myh10^mke508/+
Anatomical Term:	whole organism
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	myh9b^{mke414/mke414} myh10^{mke508/mke508} myh9b^mke414/+ myh10^mke508/+
Observed In:	whole organism
Stage:	Day 4

Phenotype Detail
