Fig. 6

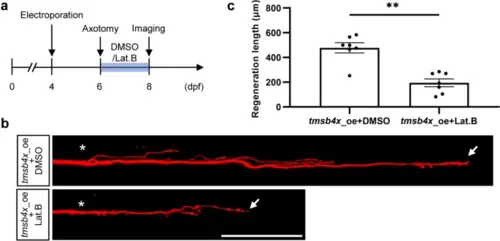

Lat. B blocks the regenerative effect of tmsb4x overexpression. a Experimental workflow. Lat. B was replaced daily. b and c Representative images (b) and statistical analysis (c) of axon regeneration in zebrafish larvae overexpressing tmsb4x treated with Lat. B immediately after axon injury and continuously for 48 h (tmsb4x_oe + DMSO, 477.7 ± 41.0 ?m, n = 7; tmsb4x_oe + Lat. B, 195.0 ± 31.5 ?m, n = 7). Assessed by a two-tailed, Mann Whitney test, p = 0.0041. The asterisks indicate the sites of injury, and the arrows indicate the terminals of the regenerated axon. Scale bar, 100 ?m
