Figure 6

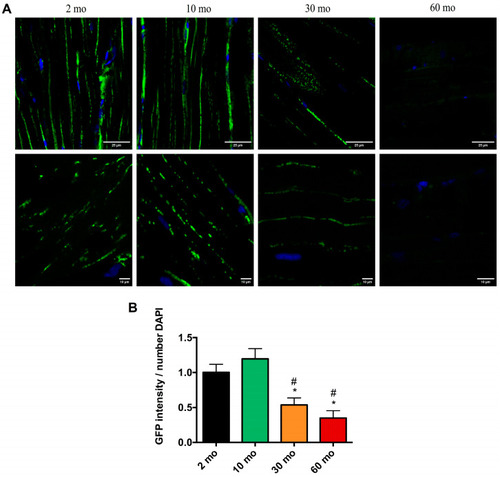

Loss of mitochondria with age. (A) Confocal microscopy images showing the nuclei labeled with DAPI and the mitochondria with GFP in the 2-, 10-, 30-, and 60-month groups. (B) The fish at 2 and 10 months exhibited a high GFP intensity, which decreased significantly at 30 and 60 months. Data are presented as mean ± SEM (n = 4 animals/group). * p < 0.05 vs. 2 mo; # p < 0.05 vs. 10 mo. Unpaired t test.
