Fig. 2

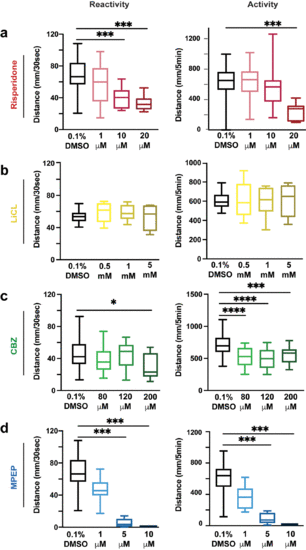

Dose response curves for drugs used in visual motor response assays. a) Risperidone exposure of WT larvae in 1, 10 and 20 μM doses. b) LiCl salt exposure of 0.5, 1 and 5 mM doses. c) CBZ exposure of WT larvae in 80, 120 and 200 μM doses. d) MPEP exposure of WT larvae in 1, 5 and 10 μM doses. Box plots represent 25th and 75th percentile, and median, with min to max whiskers. Sample sizes: WT = 23, WT + risperidone = 24, shank3 N = 33, shank3 N + risperidone = 31, shank3 C = 19, shank3 C + risperidone = 23. p values; * = p < 0.05, ** = p < 0.01, *** = p < 0.001, **** = p < 0.0001.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Conditions:
Observed In:
Stage: Day 6

Phenotype Detail
