Figure 4

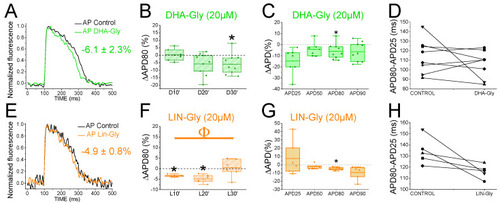

PUFA analogues have modest effects on zebrafish AP. (A) Representative zebrafish AP traces before (black) and after (light green) applying DHA-Gly (20 µM). (B) ΔAPD80 (%) after (light green) applying DHA-Gly (20 µM), as measured at different recording times (10, 20, and 30 min after application of the PUFA analogue). (C) ΔAPD (%) produced by the PUFA analogue measured for the APD25, APD50, APD80, and APD90. (D) Effect of the PUFA analogue on phase 3 of the AP. APD80–APD25 in control conditions and after DHA-Gly application. (E–H) The same as in (A–D) but for the PUFA analogue LIN-Gly (20 µM) (mean ± SEM; * p < 0.05 vs. control conditions, ^Φp < 0.05 APD80 time data average vs. control condition). Each symbol in panels D and H represent data from a different experiment.
