Fig. 7

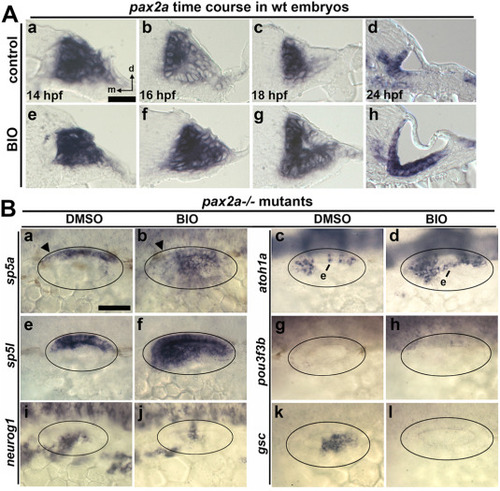

Effects of BIO on pax2a expression and otic patterning in pax2a mutants. (A) Cross sections (dorsal to the top, medial to the left) showing expression of pax2a at the indicated times in controls and embryos treated with BIO from 12 hpf. (B) Dorsolateral views showing expression of otic markers (as indicated on the left) at 24 hpf after incubation with DMSO (control) or BIO from 12 hpf as indicated at the top. Black arrowheads (Ba, Bb) show regions where sp5a expression is downregulated relative to wild-type embryos. Ectopic expression (e) of atoh1a is indicated (Bc, Bd). Scale bar, 50 ??m.

Expression Data

Genes:	atoh1a gsc neurog1 pax2a sp5a sp5l (all 6)
Fish:	AB pax2a^tu29a/tu29a
Condition:	chemical treatment by environment: 6-bromoindirubin-3'-oxime
Anatomical Term:	otic vesicle
Stage Range:	14-19 somites to Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB pax2a^tu29a/tu29a
Condition:	chemical treatment by environment: 6-bromoindirubin-3'-oxime
Observed In:	otic vesicle
Stage:	Prim-5

Phenotype Detail
