FIGURE

Figure 5

ID

ZDB-FIG-230217-14

Publication

Fung et al., 2023 - Expression of the Z Variant of α1-Antitrypsin Suppresses Hepatic Cholesterol Biosynthesis in Transgenic Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 5

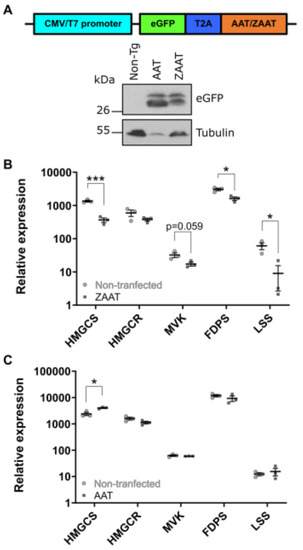

Expression of ZAAT in HepG2 cells suppresses SREBP2 target genes. (A) Transgenes used for HepG2 transfection (top panel). Immunoblot of HepG2 cell lysates for eGFP as an indication of transgene expression levels using β-tubulin as a loading control (bottom panel). qPCR analysis was performed from cDNA generated from HepG2 cells with stable overexpression of (B) eGFP-T2A-ZAAT and (C) eGFP-T2A-AAT. Expression values were normalised to the housekeeping genes GAPDH, ACTB and TBP. An unpaired student’s t-test was used to determine the statistical significance for each gene. Error bars indicate mean ± s.e.m. * p < 0.05, *** p < 0.001.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
