FIGURE

Fig. 3

ID

ZDB-FIG-221123-27

Publication

Rocha et al., 2021 - Zebrafish Cdx4 regulates neural crest cell specification and migratory behaviors in the posterior body

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

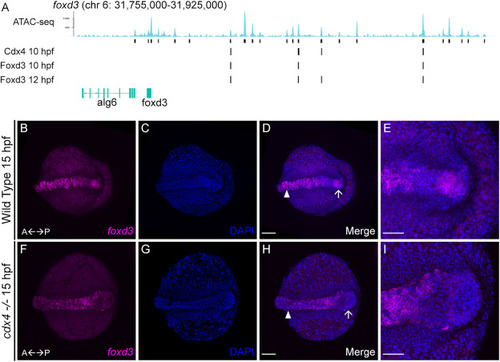

Cdx4 regulates posterior expression of foxd3. A. Analysis of Cdx4 and Foxd3 binding near the foxd3 locus. B-E. Dorsal view of 15 hpf WT or cdx4^ch107+/− heterozygous embryo shows foxd3 RNA transcripts detected by HCR in the dorsal spinal cord and tailbud (B) counterstained with DAPI (C). D. Merged image of B and C; arrow indicates tailbud, arrowhead labels neural tube. Scale bar = 100 μm. E. Magnified view of tailbud region from D; scale bar = 50 μm. F–I. Dorsal view of 15 hpf cdx4^ch107−/- mutant embryo shows foxd3 RNA transcripts detected by HCR in the dorsal spinal cord and lack of expression in the tailbud (F) counterstained with DAPI (G). H. Merged image of F and G; arrow indicates tailbud, arrowhead labels neural tube. Scale bar = 100 μm. I. Magnified view of tailbud region from H; scale bar = 50 μm.

Expression Data

Gene:	foxd3
Fish:	cdx4^ch107/ch107
Anatomical Terms:	neural tube dorsal region tail bud
Stage:	10-13 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	cdx4^ch107/ch107
Observed In:	neural tube dorsal region tail bud
Stage:	10-13 somites

Phenotype Detail
