Figure 7—figure supplement 1.

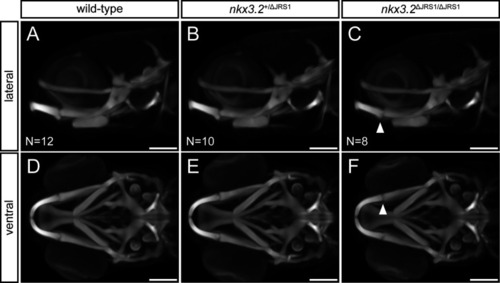

Optical projection tomography of 9 dpf jaw joint regulatory sequence 1 (JRS1) deletion zebrafish. (A–C) Lateral and (D–F) ventral maximum projection views of the average head skeleton of 9 dpf wild-type (N = 12), nkx3.2+/ΔJRS1 (N = 10), and nkx3.2ΔJRS1/ΔJRS1 (N = 8) zebrafish. White arrowhead indicates the subtle jaw joint dysmorphology seen in nkx3.2ΔJRS1/ΔJRS1 mutants. Scale bars: 150 µM. |
