FIGURE 5

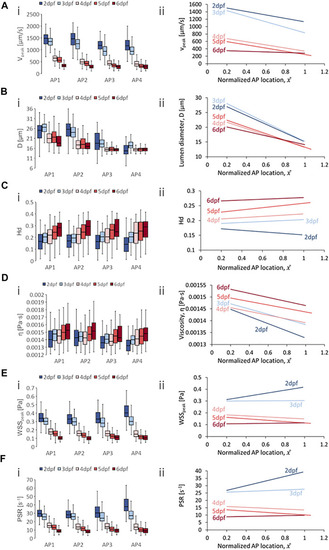

Developmental trends of morphological and hemodynamic quantities in the posterior cardinal vein/caudal vein plexus (PCV/CVP). (A) The changes in Vpeak at four regions along the anterior-to-posterior (AP) axis (i) and the AP trend for Vpeak(ii). (B) The changes in D at four AP regions (i) and the AP trend for D (ii). (C) The changes in Hd at four AP regions (i) and the AP trend for Hd(ii). (D) The changes in η at four AP regions (i) and the AP trend for η(ii). (E) The changes in WSSpeak at four AP regions (i) and the AP trend for WSSpeak(ii). (F) The changes in PSR at four AP regions (i) and the AP trend for PSR(ii). Box plots in (i) of Panels (A–D) show the median and the first (Q1) and third (Q3) quartile levels of the hemodynamic quantity for the pooled zebrafish data. The whisker bars represent the maximum and minimum ranges of the data that lie within 1.5 times of the interquartile range (IQR = Q3 − Q1) beyond Q1 and Q3.
