Fig. 6

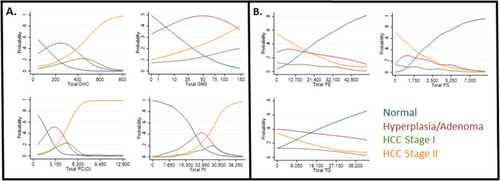

Total lipid class level association with HCC disease stage. Univariate modeling shows the probability that individual total lipid class levels are associated with normal or disease stage phenotypes. Plots show total lipid levels versus probability of disease progression. A DHC, GM3, PC(O), and PI plot. B PE, PS, and TG plot. X-axis units: pmol/mg. Key: “OR” (odds ratio); dark blue lines (normal); dark red lines (hyperplasia/ adenoma); green lines (HCC stage I); orange lines (HCC stage II)
