FIGURE 4

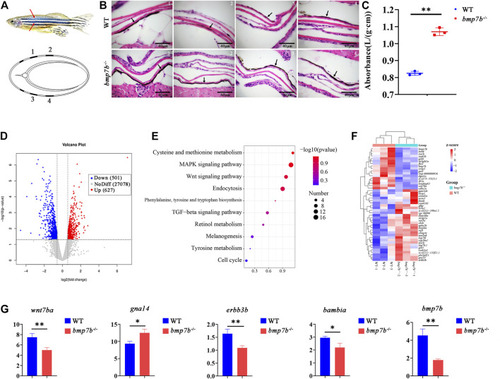

The skin structure, melanin content and gene expression differences between the wild-type and bmp7b^-/- zebrafish. (A) Schematic diagram. Top: The part of skin melanin tissue section. The red arrow represents the position on the fish body where the tissue section was observed and analyzed. Bottom: the cross-sectional schematic diagram, 1, 2, 3, and 4 correspond to the observation position of the tissue section picture in turn. (B) Skin tissue section. The arrow points to the melanin area. (C) Determination of the melanin content of the skin. The absorbance/wet weight (A₂₉₀/g) represents the melanin content. (D) The volcano map of DEGs. The abscissa represents multiple changes in gene expression in wild-type and bmp7b^-/- fish. The ordinate represents the statistical significance of differences in gene expression. (E) KEGG enrichment analysis of skin transcriptome. (F) Heat map of differential genes enriched in skin transcriptome KEGG. (G) qPCR of key genes (wnt7ba, gna14, erbb3b, bambia and bmp7b). Statistically significant differences are marked as *p < 0.05 and **p < 0.01.

Expression Data

Genes:	bambia bmp7b erbb3b gna14 wnt7ba
Fish:	WT bmp7b^{zf3599/zf3599}
Anatomical Term:	integument
Stage:	Days 30-44

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	bmp7b^{zf3599/zf3599}
Observed In:	integument integument Melanin integument melanocyte
Stage:	Days 30-44

Phenotype Detail
