FIGURE
Figure 3
- ID
- ZDB-FIG-210801-57
- Publication
- Gawel et al., 2021 - 6-Gingerol, a Major Constituent of Zingiber officinale Rhizoma, Exerts Anticonvulsant Activity in the Pentylenetetrazole-Induced Seizure Model in Larval Zebrafish
- Other Figures
- All Figure Page
- Back to All Figure Page

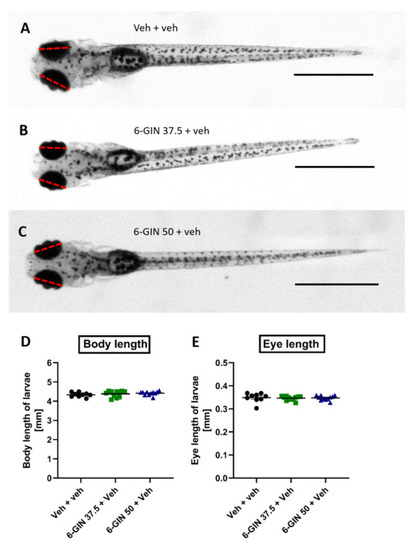

Figure 3
Larvae treated with 6-GIN are morphologically indistinguishable from their Veh-treated counterparts. (A) Larva treated with Veh for 24 h (n = 9). (B) Larva treated with 37.5 µM 6-GIN for 24 h (n = 11). (C) Larva treated with 50 µM 6-GIN for 24 h (n = 11). (D) Comparison of body length of Veh- and 6-GIN-treated larvae (E) Comparison of eye length of Veh- and 6-GIN-treated larvae. Red dash lines represent how eye length was measured, scale bar = 1 mm. 6-GIN—6-gingerol, Veh—vehicle. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
