Figure 2

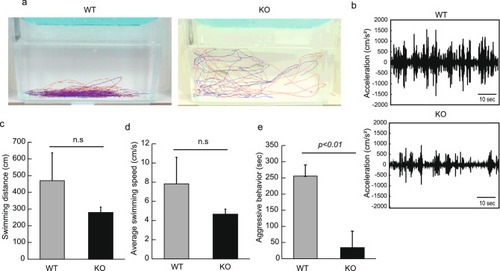

Analysis of aggressive behavior in Neu1-KO and WT zebrafish. Two unfamiliar male zebrafish were set in the transparent aquarium and their aggressive behavior was observed for 10 min. (a) Tracking of 2 males in WT and Neu1-KO. Red and blue lines indicate the swimming tracking of 2 males. (b) Swimming acceleration. (c) Swimming distance. (d) Swimming speed. (e) Aggressive behavior. n = 6 for each group. Results are shown as means ± standard deviation. All values were compared using Mann–Whitney U test. n.s., not significant.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	neu1^{zf3377/zf3377}
Observed In:	aggressive behavior swimming
Stage:	Adult

Phenotype Detail
