FIGURE 1

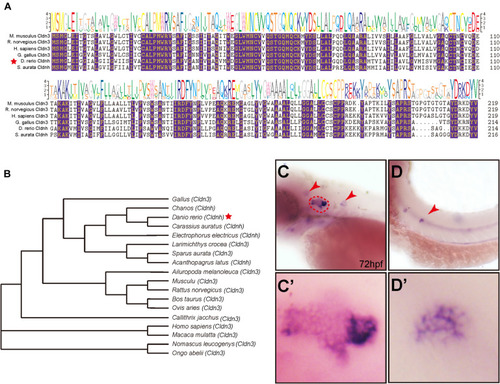

The phylogenetic and expression analysis of zebrafish claudin h. (A) The alignment of claudin h amino acid sequences from different species, and the identical aa residues among all the aligned sequences are labeled with color. (B) Phylogenetic analysis of claudin h. Neighbor-joining tree was produced with the Mega 5.0 software and the red star marked the zebrafish. (C,D) At 72 hpf, the in situ hybridization signal of claudin h is localized in the otic vesicle and neuromast. The red dotted line marked the boundary of the otic vesicle and the red arrow head marked the neuromast in the head and posterior lateral line. (C′,D′) The magnified figure of the positive signals in otic vesicle and neuromast line.

Expression Data

Gene:	cldn3c
Fish:	AB
Anatomical Terms:	head neuromast otic vesicle posterior lateral line neuromast
Stage:	Protruding-mouth
