FIGURE

Fig. 7

ID

ZDB-FIG-210301-154

Publication

Zimmer et al., 2020 - Use of a carbonic anhydrase ca17a knockout to investigate mechanisms of ion uptake in zebrafish (Danio rerio)

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

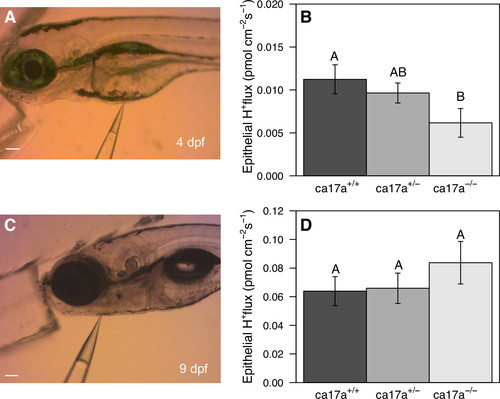

Epithelial H⁺ flux in ca17a+/+, ca17a+/−, and ca17a−/− zebrafish (Danio rerio) larvae. The H⁺ flux was measured in the ventral yolk sac area of 4-dpf larvae (A) and the pharyngeal arch area of 9-dpf larvae (C). Scale bars = 100 μm. There was an effect of genotype on H⁺ flux at the yolk sac of 4 dpf larvae (B) (ANOVA; F = 4.7, P = 0.02, n = 7 for ca17a+/+ and ca17a+/−, n = 6 for ca17a−/−) but not H⁺ flux at the pharyngeal arch region of 9-dpf larvae (D) (ANOVA; F = 0.8, P = 0.45, n = 8 for ca17a+/+ and ca17a+/−, n = 7 for ca17a−/−). Bars with different letters are significantly different (P < 0.05) from one another. Data are presented as means ± SE. dpf, days postfertilization.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ca2^ot206/ot206 ca2^ot206/+
Observed In:	yolk syncytial layer proton transmembrane transport
Stage Range:	Day 4 to Days 7-13

Phenotype Detail
