Fig. 6

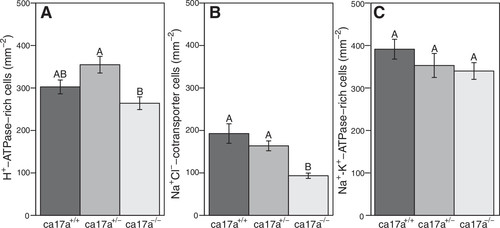

Ionocyte density in ca17a+/+, ca17a+/?, and ca17a?/? zebrafish (Danio rerio) larvae at 4 dpf. Density of H+-ATPase-rich cells (A) and Na⁺ Cl^?-cotransporter cells (B) significantly differed among genotypes (ANOVA; A: F = 7.7, P < 0.01, n = 14 for ca17a+/+, n = 19 for ca17a+/?, and n = 23 for ca17a?/?; B: F = 20.5, P < 0.01, n = 15 for ca17a+/+, n = 16 for ca17a+/?, and n = 26 for ca17a?/?, respectively). There was no effect of genotype on Na⁺-K⁺-ATPase-rich cells (C) (ANOVA; F = 1.3, P = 0.29, n = 8 for ca17a+/+ and ca17a+/?, n = 11 for ca17a?/?). Bars with different letters are significantly different (P < 0.05) from one another across genotypes. Data are presented as means � SE.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ca2^ot206/ot206 ca2^ot206/+
Observed In:	NaK ionocyte NCC ionocyte vH ionocyte
Stage:	Day 4

Phenotype Detail
